CHR2L1SSTS - Betts- 2" HYDRAULIC VAPOR VALVE-Single Outlet- Stainless - LJI Part: CHR2L1SSTS
| Brand | : Betts |
|---|---|
| Size | : 2 Inch |
| Type | : Vapor Vents |
| Material | : Stainless Steel |
| Vendor Number | : CHR2L1SSTS |

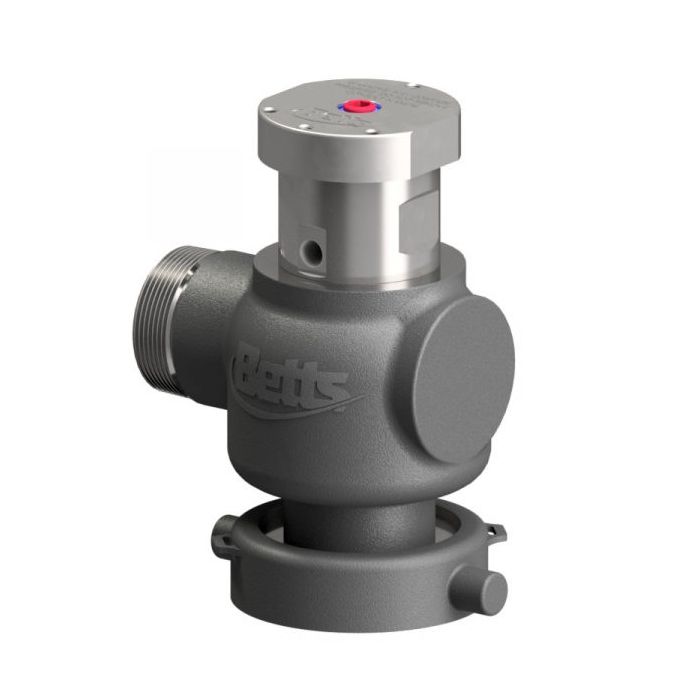

The Betts CHR2L1SSTS is a 2-inch stainless steel hydraulic vapor recovery valve, low profile, with a single 2-inch MNPT outlet.
The Betts CHR2L1SSTS Vapor-Pro Hydraulic Vapor Recovery Valve is a versatile, robust positive opening vapor valve that facilitates the transfer of displaced air and vapor during loading and unloading. Its 316L stainless steel construction and PTFE seals suit a wide variety of volatile organic compounds (VOCs) and chemicals transported in DOT 407 and 412 cargo tanks. This low-profile version accommodates tighter tank piping configurations. The swivel connection mounts to a 3-inch NPT nozzle, and the single 2-inch NPT outlet includes a sacrificial shear groove. The hydraulic actuator is easily detachable for quick cleaning or replacement without removing the entire valve from the tank. A red anodized aluminum piston/indicator gives a positive visual signal of the valve's open/closed state, with an optional extension flag (part 29209SS) available for greater visibility from the ground.
- Size: 2 inches
- Profile: Low
- Outlet Configuration: Single
- Material: 316L Stainless Steel
- Seal Material: PTFE
- Valve MAWP: 50 psi (3.4 bar)
- Minimum Bursting Pressure: 200 psi (13.8 bar)
- Working Temperature Range: -40F to 400F (-40C to 204C)
- Hydraulic Line Pressure: 200 psi minimum / 3,500 psi maximum
- Outlet Thread: 2-inch NPT
- Mounting Thread: 3-inch NPT
