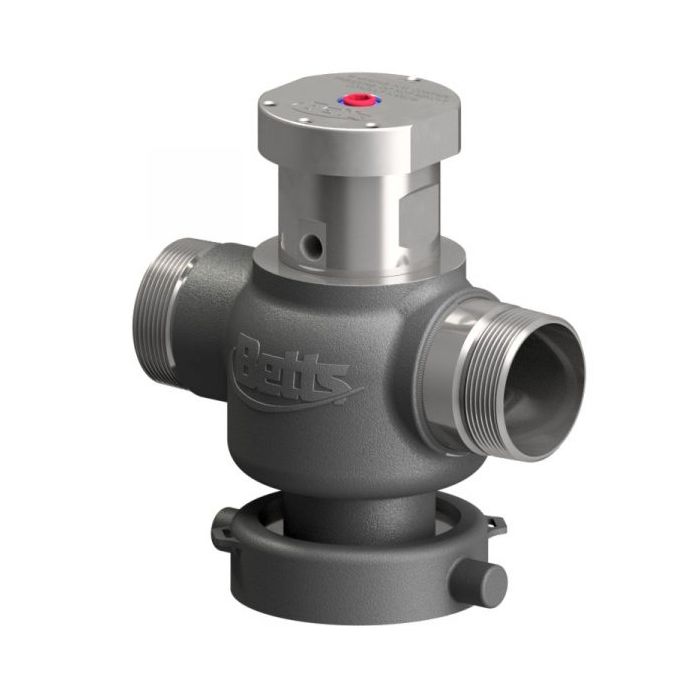

CHR2L2SSTS - Betts- 2" HYDRAULIC VAPOR VALVE-Dual Outlet- Stainless - LJI Part: CHR2L2SSTS
| Brand | : Betts |
|---|---|
| Size | : 2 Inch |
| Type | : Vapor Vents |
| Material | : Stainless Steel |
| Vendor Number | : CHR2L2SSTS |
The Betts CHR2L2SSTS is a 2-inch stainless steel hydraulic vapor recovery valve, low profile tee style, with a dual 2-inch MNPT outlet.
The Betts CHR2L2SSTS Vapor-Pro Hydraulic Vapor Recovery Valve is a versatile, robust positive opening vapor valve that facilitates the transfer of displaced air and vapor during loading and unloading. Its 316L stainless steel construction and PTFE seals suit a wide variety of volatile organic compounds (VOCs) and chemicals transported in DOT 407 and 412 cargo tanks. This dual-outlet, low-profile configuration accommodates tighter tank piping configurations. The swivel connection mounts to a 3-inch NPT nozzle, and the 2-inch NPT outlets include sacrificial shear grooves. The hydraulic actuator is easily detachable for quick cleaning or replacement without removing the entire valve from the tank.
- Size: 2 inches
- Profile: Low, Tee Style
- Outlet Configuration: Dual
- Material: 316L Stainless Steel
- Seal Material: PTFE
- Valve MAWP: 50 psi (3.4 bar)
- Minimum Bursting Pressure: 200 psi (13.8 bar)
- Working Temperature Range: -40F to 400F (-40C to 204C)
- Hydraulic Line Pressure: 200 psi minimum / 3,500 psi maximum
- Outlet Thread: 2-inch NPT
- Mounting Thread: 3-inch NPT
