EV46934ALTS - Betts -Emergency Valve - LJI Part: EV46934ALTS
| Brand | : Betts |
|---|---|
| Size | : 3 Inch |
| Type | : Valves |
| Vendor Number | : EV46934ALTS |

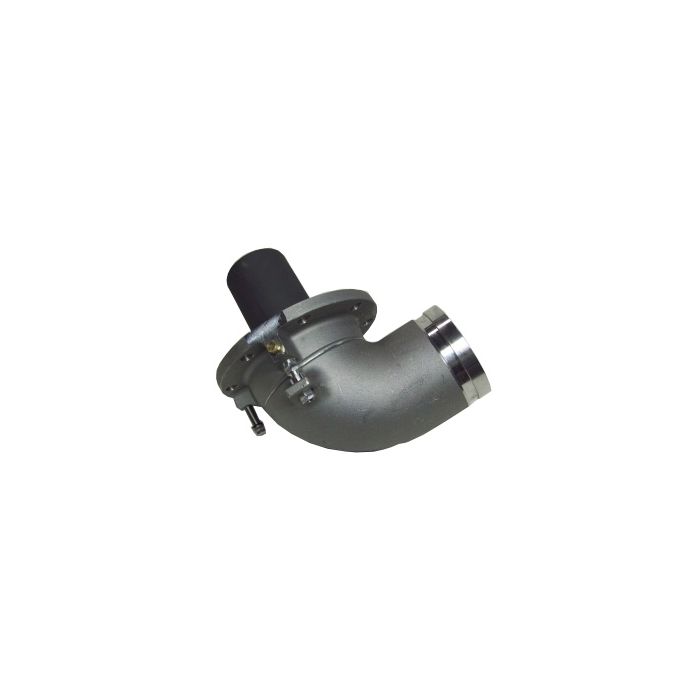

The Betts EV46934ALTS is a 3-inch aluminum internal air-operated emergency valve with a 90-degree grooved elbow outlet.
The Betts internal air emergency valve meets HM183 requirements for an internal self-closing stop valve. The body is constructed of aluminum with a shear section satisfying 49CFR178.345-8 as tested per TTMA RP 84. The 1/8-inch NPT air inlet is designed to shear and close the valve in the event of an under-ride accident, and a fusible plug dumps air pressure if temperatures exceed 212F. The valve uses Teflon-encapsulated seals for broad chemical compatibility, with an internal air cylinder that saves exterior space for maximum piping clearance, and a stainless steel jackscrew allows manual operation if the air system fails. Maximum operating pressure is 25 psi with 80 psi line pressure and 35 psi with 100 psi line pressure.
- Size: 3 inches
- Body Material: Aluminum
- Outlet Style: Grooved Elbow, 90 Degrees
- Actuation: Internal Air Operated
- Air Inlet: 1/8-inch NPT
- Fusible Plug Rating: 212F
- Maximum Operating Pressure: 25 psi @ 80 psi line / 35 psi @ 100 psi line
- Valve MAWP: 35 psi (2.4 bar)
- Minimum Bursting Pressure: 140 psi (9.7 bar)
