FG4AL - Betts - 4" Aluminum Adapter Flange X Grooved Ttma Ttma - LJI Part: FG4AL
SKU
FG4AL
SKU
FG4AL
$127.65
| Brand | : Betts |
|---|---|
| Size | : 4 Inch |
| Type | : Flange Adapter |
| Material | : Aluminum |
| Vendor Number | : FG4AL |

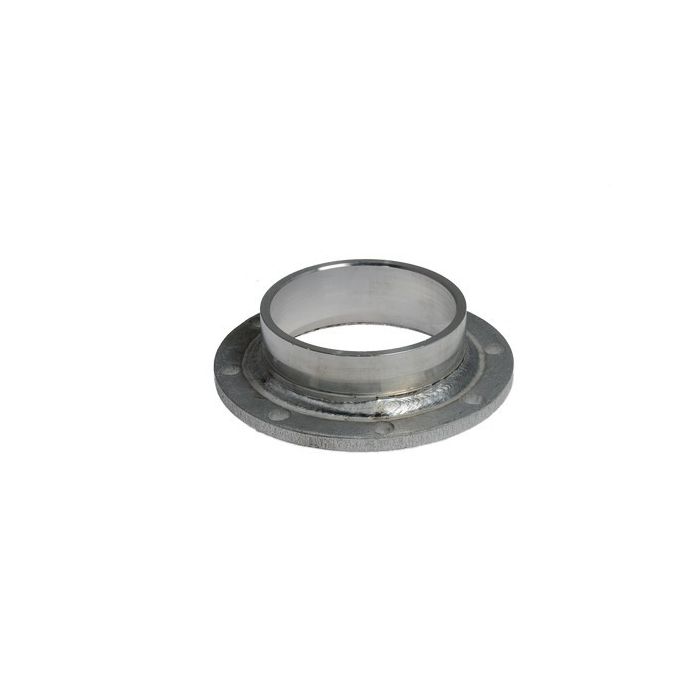

The Betts FG4AL is a 4-inch aluminum adapter connecting a TTMA flange to a grooved end, rated for a 50 psi maximum allowable working pressure.
The Betts FG4AL Adapter connects a 4-inch TTMA flange to a grooved pipe end. Its bolt pattern follows TTMA recommended practices, and the aluminum construction is rated for a maximum allowable working pressure of 50 psi (3.4 bar). This adapter is built for tank trailer piping connections requiring a flange-to-grooved transition.
Technical Specs List
- Size: 4 inches
- Body Material: Aluminum
- Maximum Allowable Working Pressure: 50 psi (3.4 bar)
- Connection Type: TTMA flange x Grooved end
- Bolt Pattern: TTMA recommended practices
