FH6MS - Betts - 6" Steel Adapter Flange X Half Coupler Ttma - LJI Part: FH6MS
SKU
FH6MS
SKU
FH6MS
$242.86
| Brand | : Betts |
|---|---|
| Size | : 6 Inch |
| Type | : Flange Adapter |
| Material | : Steel |
| Vendor Number | : FH6MS |

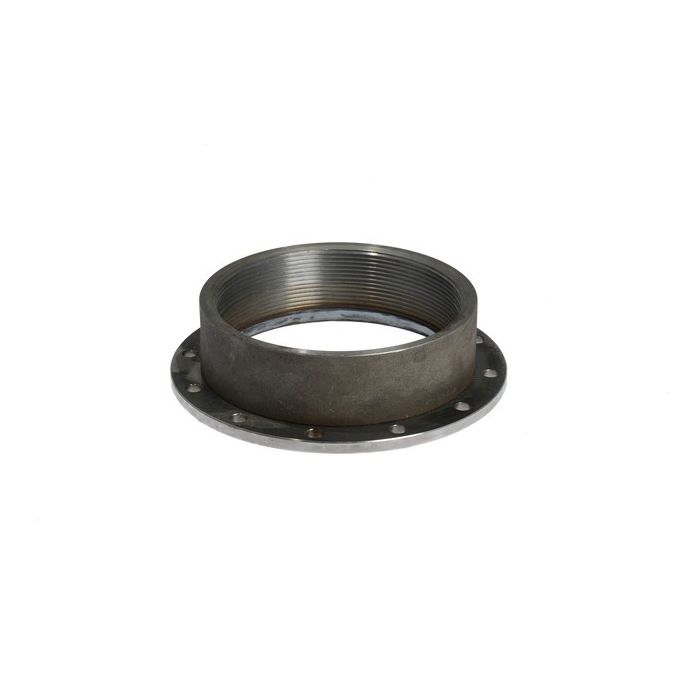

The Betts FH6MS is a 6-inch steel adapter connecting a TTMA flange to a half coupler with standard NPT threads, rated for a 75 psi maximum allowable working pressure.
The Betts FH6MS Adapter connects a 6-inch TTMA flange to a half coupler with standard NPT threads. Its bolt pattern follows TTMA recommended practices, and the steel construction is rated for a maximum allowable working pressure of 75 psi (5.2 bar). This adapter is built for tank trailer piping connections requiring a flange-to-coupler transition.
Technical Specs List
- Size: 6 inches
- Body Material: Steel
- Maximum Allowable Working Pressure: 75 psi (5.2 bar)
- "A" Dimension: 2.31 inches (58.7 mm)
- Flange Outer Diameter: 9.00 inches (228.6 mm)
- Flange Inner Diameter: 6.69 inches (169.9 mm)
- Bolt Holes: 12 holes, 0.44 inches (11.2 mm) diameter, on an 8.13-inch (206.4 mm) bolt circle
- Thread Type: Standard NPT
- Bolt Pattern: TTMA recommended practices
