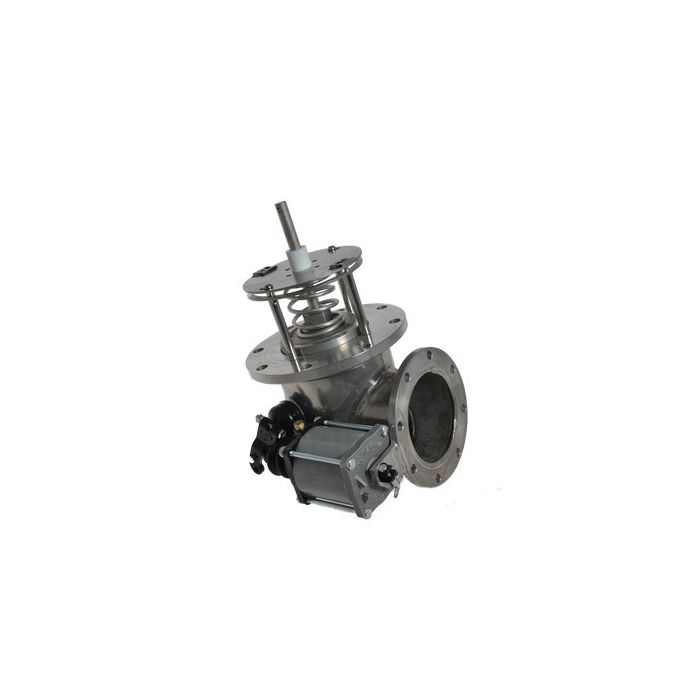

EV46227SSTS - Betts - Emergency Valve, 4" Stainless Steel External Air Operated Flanged 90 Outlet Tef-O-Sil Seat - LJI Part: EV46227SSTS

The Betts EV46227SSTS Emergency Valve is a 4-inch stainless steel, air-operated valve with a flanged 90-degree outlet, built to shut off product flow at the tank bottom in an emergency. It features a self-cleaning tapered seat with Teflon-encapsulated O-ring seals for broad chemical compatibility, along with a stuffing box using two O-ring seals for positive sealing. The external air cylinder is hard-coated aluminum with a polished stainless steel shaft, keeping product out of the air supply, and includes a 1/8-inch NPT air connection port with a fusible plug pre-installed. This valve must always be opened before bottom loading through it to avoid damage to the tank or valve.

Technical Specs List

• Size: 4 inches
• Outlet Style: Flanged, 90 degrees
• Actuation: External air operated
• Body/Trim Material: Stainless steel
• Seal Type: Teflon-encapsulated O-ring (Tef-O-Sil)
• Weight: 26.5 pounds
• "A" Dimension: 4.50 inches
• "B" Dimension: 5.00 inches
• Inlet Flange: 7.25-inch bolt circle, 8 holes at 9/16 inch
• Outlet Flange: 5.88-inch bolt circle, 8 holes at 7/16 inch
• Air Connection Port: 1/8-inch NPT
• Force Rating (TTMA RP86): Fb-max = 35,100 pounds
