EV46472ALTS - Betts Emergency Valve, 6" X 4" Aluminum External Air Operated Flanged 90 Outlet Tef-O-Sil Seat - LJI Part: EV46472ALTS

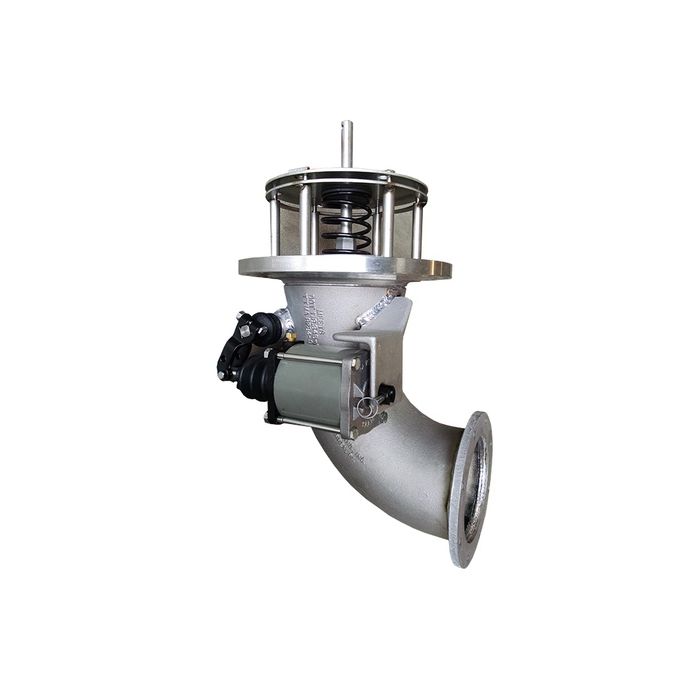

The Betts EV46472ALTS Emergency Valve is a 6-inch by 4-inch aluminum High Flow valve with a flanged 90-degree long radius outlet, built to shut off product flow at the tank bottom in an emergency while providing increased flow rates compared to standard 4-inch valves. The long radius elbow is intended for maximum flow where piping clearance allows. It features Teflon-encapsulated seals for broad chemical compatibility and a special lift mechanism for smooth operation, with a body constructed of aluminum and stainless steel trim. The shear section is tested per TTMA RP84 and meets 49CFR178.345-8. The external air cylinder is hard-coated aluminum with a polished stainless steel shaft, keeping product out of the air supply, and includes a 1/8-inch NPT air connection port with a fusible plug pre-installed. This valve must always be opened before bottom loading through it to avoid damage to the tank or valve.

Technical Specs List

• Size: 6-inch inlet x 4-inch outlet
• Outlet Style: TTMA Flanged, 90 degrees, long radius elbow
• Actuation: External air operated
• Body Material: Aluminum
• Trim Material: Stainless steel
• Seal Type: Teflon-encapsulated (Tef-O-Sil)
• Weight: 18.2 pounds
• "A" Dimension: 9.75 inches
• "B" Dimension: 6.75 inches
• Inlet Flange (6-inch Sump): 9.25-inch bolt circle, 12 holes at 0.563 inches
• Outlet Flange (4-inch TTMA): 5.88-inch bolt circle, 8 holes at 0.438 inches
• Air Connection Port: 1/8-inch NPT
• Force Rating (TTMA RP86): Fb-max = 13,800 pounds
