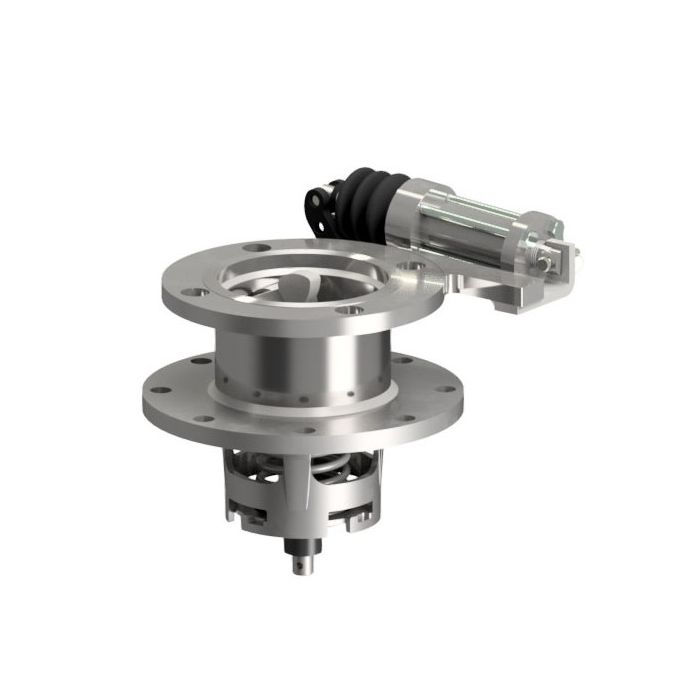

CH47330SSTS - Betts- 4" Hydraulic Top Unloading Valve- Stainless - LJI Part: CH47330SSTS
| Brand | : Betts |
|---|---|
| Size | : 4 Inch x 3 Inch |
| Type | : Valves |
| Material | : Stainless Steel |
| Vendor Number | : CH47330SSTS |
The Betts CH47330SSTS is a 4-inch stainless steel hydraulic top unloading valve for DOT407 and DOT412 chemical cargo tanks.
The Betts CH47330SSTS Hydraulic Top Unloading Valve is an internal self-closing stop valve installed on the top of the tank for top unloading applications. It does not include a sacrificial shear section, so CFR49 178.345-8(c) requires it to be positioned within or between adjacent rollover damage protection devices. Phonographic finishes on the flange faces support proper gasket sealing, and the actuator connects via a 1/4-inch NPT hydraulic inlet port. The 316 stainless steel body and replaceable Tef-Sil seals suit the demands of chemical transportation. A 316 stainless conical adapter, sold separately, can be mounted between the tank pad and the valve and welded to a 2-inch standpipe, with a design that can be modified to fit larger pipe sizes.
- Body Material: 316 Stainless Steel
- Seal Material: Tef-Sil
- Valve MAWP: 50 psi (3.4 bar)
- Minimum Bursting Pressure: 200 psi (13.8 bar)
- Working Temperature Range: -40F to 400F (-40C to 204C)
- Hydraulic Line Pressure: 1,500 psi minimum / 3,500 psi maximum (103-241 bar)
- Hydraulic Volume to Fully Open: 1.08 in3 (17.7 ml)
- Hydraulic Inlet Port: 1/4-inch NPT
