AD22V5-AABN - Betts - Manifold Air Distributor Valve for 5 Compartments - LJI Part: AD22V5-AABN
SKU
AD22V5-AABN
SKU
AD22V5-AABN
$723.16
| Brand | : Betts |
|---|---|
| Type | : Valves |
| Material | : Aluminum |
| Vendor Number | : AD22V5-AABN |
Short Description:

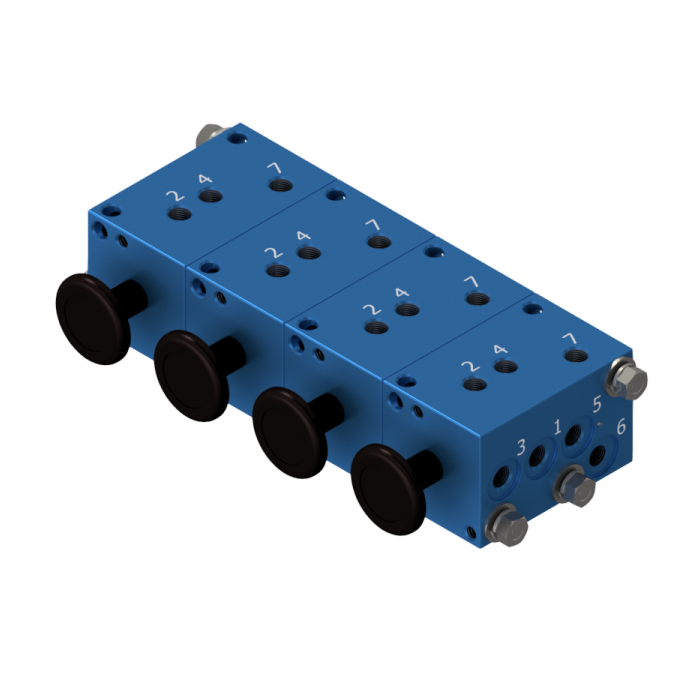

This Manifold Air Distributor Valve from Betts is designed for 5 Compartment tanks. It is made from lightweight anodized aluminum that resists corrosion and has Buna-N seals. Furthermore, it can be used to control the operation of an Air Manifold System on a cargo tank and includes a Push/Pull design with an Air Reset feature.
Details
- Max Air Pressure:150 PSI Temperature Range:-40F to 250F
- Push/pull 5/2 directional control valve, usable as a single valve or stacked for multiple compartments
- Two-Position Control provides hold-down air when knob is pushed in; opens compartment valve and locks out opposite bank's valve when pulled out
- Air Reset Feature retracts knob to closed position during system shutdown
- ?Plug and Play? Assembly allows use with Bett?s Master Control Valve (AD22MC) and available as part of Air Control Panel (AP22)
- Port and Mounting Details: All ports are 1/8-inch NPT; valve body has 1/4-20 mounting holes for front mounting or .26 through holes for bottom mounting
