6496ALFS - Betts - Aluminum Ppv Vent Assembly For Dot406 With Fluorsilicone Disc - LJI Part: 6496ALFS
SKU
6496ALFS
SKU
6496ALFS
$73.80
| Brand | : Betts |
|---|---|
| Type | : Manway Vents |
| Material | : Aluminum |
| Vendor Number | : 6496ALFS |
Short Description:

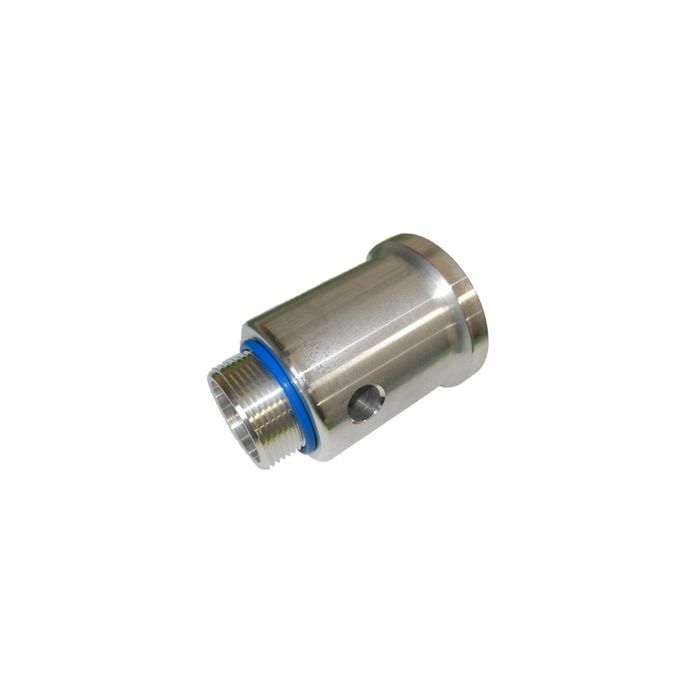

The Betts 6496ALV Normal Vent is a dual purpose, pressure and vacuum vent for DOT406 tank trailers. It is made from aluminum, has 1 5/8-12 UN mounting threads, and has a Fluorosilicone seal. This vent normalizes internal tank vacuum and pressure through the use of a unique weighted roll-over block, which increases the set pressure of the vent in a roll over situation but does not act as a shutoff device, allowing the vent to maintain its primary function as a relief device in all situations. The vent is flow tested and marked in accordance with DOT requirements.
Details
Betts 6496ALV Detailed Specifications
- Mounting Threads: 1 5/8-12UN
- Body Material: Aluminum
- Set Pressure (Out Breathing): 1.0 to 1.75 psig
- Pressure Flow Capacity (Out Breathing): 1200 CFH @ 3 psi
- Vacuum Set (In Breathing): 0.25 to 0.375 psig
- Vacuum Flow Capacity (In Breathing): 3350 CFH @ 1 psi
- Weight: 1.0 pounds
- Seal Material: Fluorosilicone
- Seal Temperature Range: -50F to 300F
