PPVL820BXB - Betts - Aluminum Tank Trailer Manhole - LJI Part: PPVL820BXB
SKU
PPVL820BXB
SKU
PPVL820BXB
$427.19
| Brand | : Betts |
|---|---|
| Size | : 20 Inch |
| Type | : Manholes |
| Material | : Aluminum / Zinc |
| Vendor Number | : PPVL820BXB |

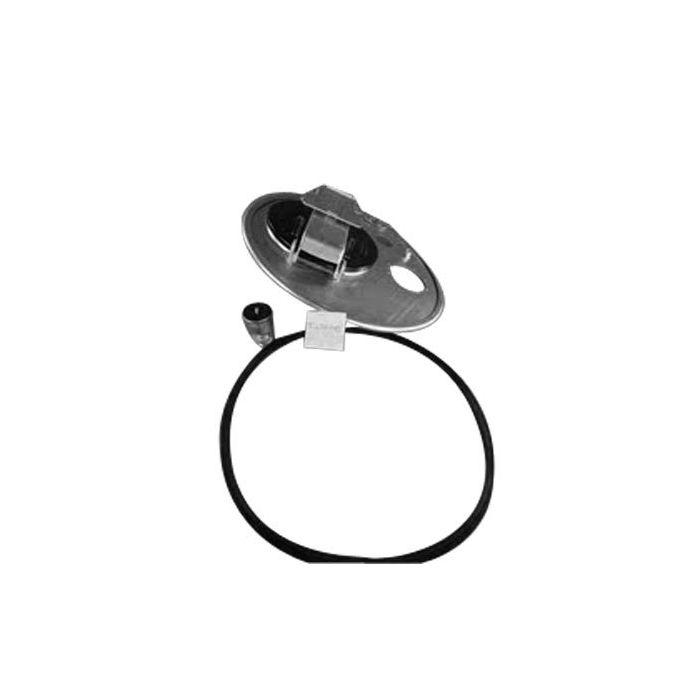

The Betts PPVL820BXB is a 20-inch offset manhole with a zinc-plated steel clamp ring cover and strongback, an integral E-coated aluminum PAF 406-98 pressure relief valve, Buna-N gaskets, and no weld collar included.
The Betts PPVL820BXB Manhole Assembly is a 20-inch offset clamp ring style manhole with an integral PAF 406-98 surge suppression pressure relief valve for DOT406 and TC406 cargo tanks. The 10-inch reclosing pressure relief valve meets the dynamic pressure surge requirements of 49CFR178.345-10(b)(3)(ii) with less than one liter of leakage as tested per TTMA RP No. 81, and its cover doubles as a quick-open inspection hatch with a secondary safety catch. This assembly includes a 6496 P/V normal vent, and the offset manhole design provides mounting provisions for a bolted-style vapor recovery valve and liquid level sensor. The manhole cover and strongback are constructed of zinc-plated steel, while the PRV cover and normal vent are aluminum, with Buna-N gaskets throughout. It is certified per 49CFR178.345-5 with a 36 psig test pressure. The weld collar is not included and should be selected separately to match the tank shell material.
Technical Specs List
- Size: 20 inches
- Manhole Style: Offset
- Manhole Cover Material: Steel, Zinc-Plated
- Strongback and Latch Material: Steel, Zinc-Plated
- PRV Cover Material: E-Coated Aluminum
- Normal Vent Material: Aluminum (6496AL)
- Gasket Material: Buna-N (Nitrile)
- Weight: 30.2 pounds
- Pressure Relief Valve Setting: 3.63 psig minimum, 4.55 psig maximum
- Maximum Temperature: 212F (100C)
- Test Pressure: 36 psig (per 49CFR178.345-5)
- Weld Collar: Not included
