RVP4NT-25 - Betts Guardian 4 Inch Pressure Relief Vent - NPSF Thread - 25 psi - LJI Part: RVP4NT-25
| Brand | : Betts |
|---|---|
| Size | : 4 Inch |
| Type | : Vents |
| Vendor Number | : RVP4NT-25 |

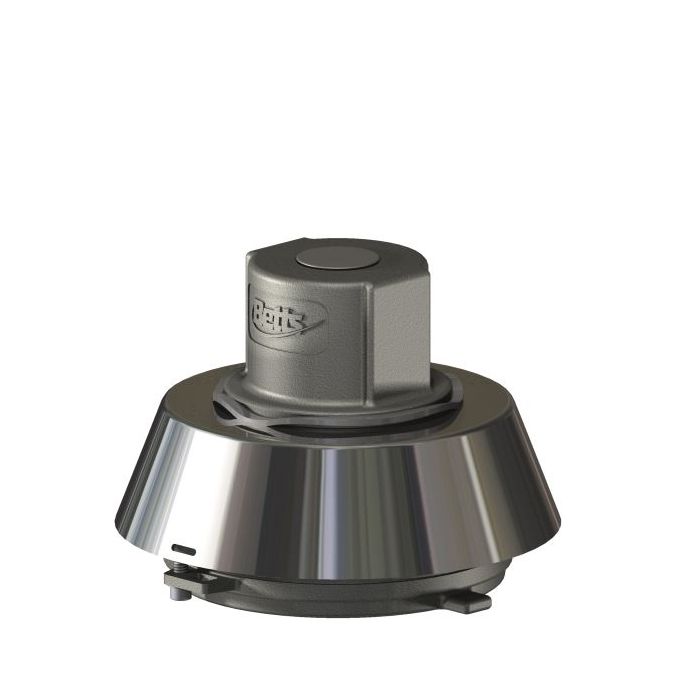

The Betts Guardian RVP4NT-25 is a 4-inch NPSF Thread-connection pressure relief valve for a 25 psig MAWP cargo tank, with PTFE seals and a 316 stainless steel body.
The Betts Guardian RVP4NT-25 Pressure Valve is a spring-loaded, reclosing pressure relief device for a cargo tank's primary pressure relief system, designed, tested, and marked in accordance with 49CFR 178.345-10, 178.347-4, and 178.348-4. It features a compact, optimized flow design in 316 stainless steel with PTFE seals and wear components, a safety stop screw to help prevent accidental unthreading of the housing, and seal tabs on the shroud for added security. The NPSF Thread connection is sized at 4 inches, and the valve is rated for a 25 psig MAWP tank. Simple in-place maintenance is supported.
- Size: 4 inches
- Connection: NPSF Thread
- Body Material: 316 Stainless Steel
- Seal Material: PTFE
- Tank MAWP Rating: 25 psig
