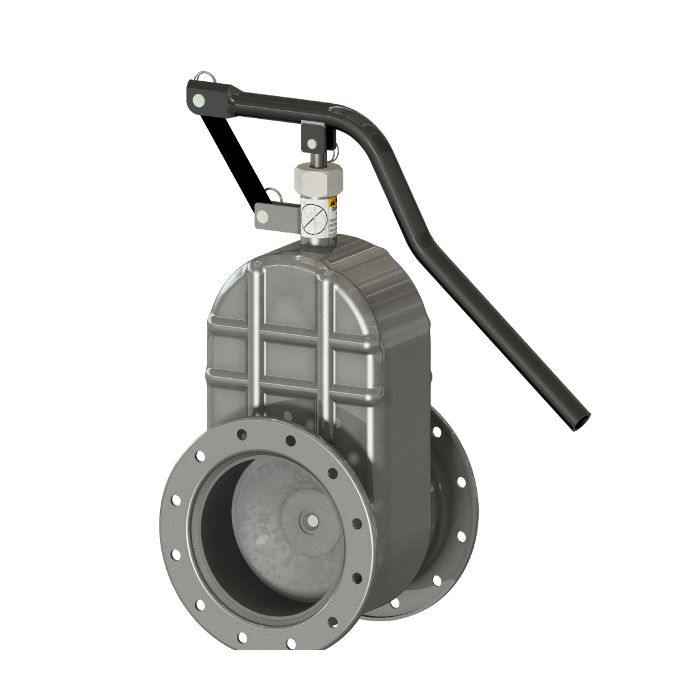

SV906SSM - Betts - 6" Stainless Steel Sliding Gate Valve Metal To Metal Seat Ttma Flg X Flg - LJI Part: SV906SSM

The Betts SV906SSM Sliding Valve is an economical, manually operated external stop valve that provides a quick open or close function. The 316 stainless steel gate offers premium corrosion resistance, and the adjustable packing nut with woven PTFE-infused packing allows for easy stem adjustments. The metal-to-metal seal offers advantages for many applications but is susceptible to wear and scratches; a replaceable o-ring seat sliding valve is available if a maintainable seal is required. This valve connects a TTMA flange to a TTMA flange and is constructed entirely of 316 stainless steel.

Technical Specs List

• Size: 6 inches
• Connection: TTMA Flange x TTMA Flange
• Body Material: 316 Stainless Steel
• Stem and Gate Material: 316 Stainless Steel
• Seat Type: Metal-to-metal
• Weight: 32.5 pounds
• Flange Outer Diameter: 9.38 inches
• Flange Bolt Circle: 8.13 inches
• Bolt Holes: 12 holes, 0.44 inches diameter
• Maximum Allowable Working Pressure: 50 psi (3.4 bar)
• Minimum Burst Pressure: 200 psi (13.8 bar)
• Temperature Range: -40F to 500F (-40C to 260C)
