SV956SSM - Betts - Tank Trailer Valve, 6" Stainless Steel Sliding Gate Valve Metal To Metal Seat Ansi Flg X Flg - LJI Part: SV956SSM
SKU
SV956SSM
SKU
SV956SSM
$1,247.19
| Brand | : Betts |
|---|---|
| Size | : 6 Inch |
| Type | : Valves |
| Material | : Stainless Steel |
| Vendor Number | : SV956SSM |

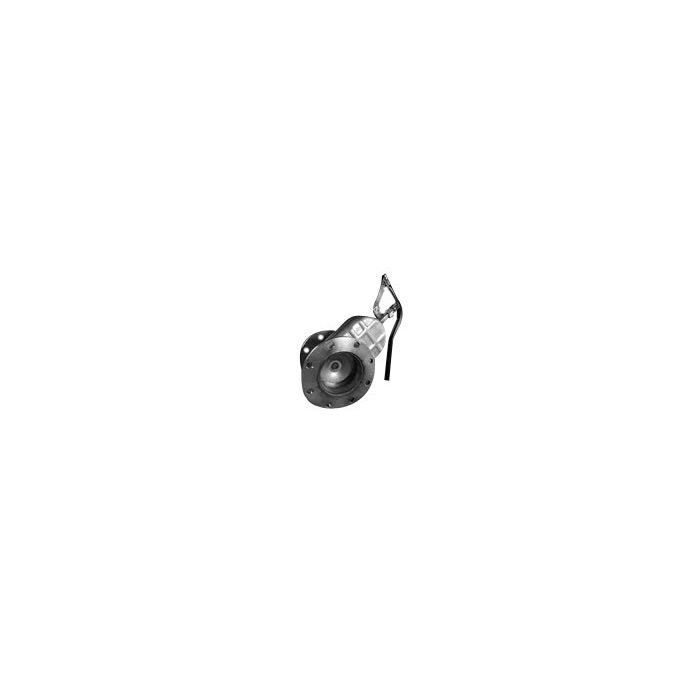

The Betts SV956SSM is a 6-inch sliding gate valve with a 316 stainless steel body, stem, and gate, metal-to-metal seat, connecting an ANSI flange to an ANSI flange.
The Betts SV956SSM Sliding Valve is an economical, manually operated external stop valve that provides a quick open or close function. The 316 stainless steel gate offers premium corrosion resistance, and the adjustable packing nut with woven PTFE-infused packing allows for easy stem adjustments. The metal-to-metal seal offers advantages for many applications but is susceptible to wear and scratches; a replaceable o-ring seat sliding valve is available if a maintainable seal is required. This valve connects an ANSI flange to an ANSI flange and is constructed entirely of 316 stainless steel.
Technical Specs List
- Size: 6 inches
- Connection: ANSI Flange x ANSI Flange
- Body Material: 316 Stainless Steel
- Stem and Gate Material: 316 Stainless Steel
- Seat Type: Metal-to-metal
- Weight: 46.0 pounds
- Flange Outer Diameter: 11.0 inches
- Flange Bolt Circle: 9.50 inches
- Bolt Holes: 8 holes, 0.88 inches diameter
- Maximum Allowable Working Pressure: 50 psi (3.4 bar)
- Minimum Burst Pressure: 200 psi (13.8 bar)
- Temperature Range: -40F to 500F (-40C to 260C)
