SU25187SS - Betts - 3" Stainless Steel Sump With Removable Studs - LJI Part: SU25187SS
SKU
SU25187SS
SKU
SU25187SS
$239.59
| Brand | : Betts |
|---|---|
| Size | : 3 Inch |
| Type | : Sumps |
| Material | : Stainless Steel |
| Vendor Number | : SU25187SS |

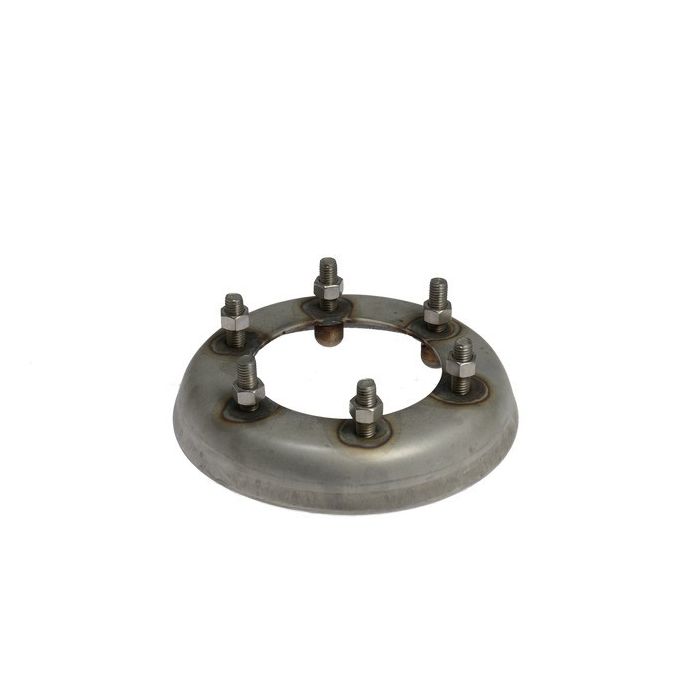

The Betts SU25187SS is a 3-inch 316L stainless steel drain sump with removable studs, rated for 35 psi MAWP.
The Betts SU25187SS Drain Sump is designed for complete drainage and optimized flow, offering a solid, lightweight mounting for all styles and makes of valves. Its bolt pattern follows TTMA recommended practices, and it comes standard with 6 316 stainless steel studs that are replaceable if threads become damaged. The sump is constructed of 316L SS-SA240 stainless steel and carries a 35 psi maximum allowable working pressure with a 140 psi minimum bursting pressure.
Technical Specs List
- Size: 3 inches
- Body Material: 316L Stainless Steel (SA240)
- Stud Material: 316 Stainless Steel
- Number of Studs: 6
- Weight: 5.2 pounds
- Thickness: 0.19 inches
- Depth: 1.56 inches
- Outer Diameter: 9.13 inches
- Inner Diameter: 5.00 inches
- Bolt Circle: 6.25 inches
- Maximum Allowable Working Pressure: 35 psi (2.4 bar)
- Minimum Bursting Pressure: 140 psi (9.7 bar)
