FG1013 - Betts - 3" Steel Manual Gate Valve Metal To Metal Seat Ttma Flg X Flg - LJI Part: FG1013
SKU
FG1013
SKU
FG1013
$213.92
| Brand | : Betts |
|---|---|
| Size | : 3 Inch |
| Type | : Valves |
| Material | : Steel |
| Vendor Number | : FG1013 |

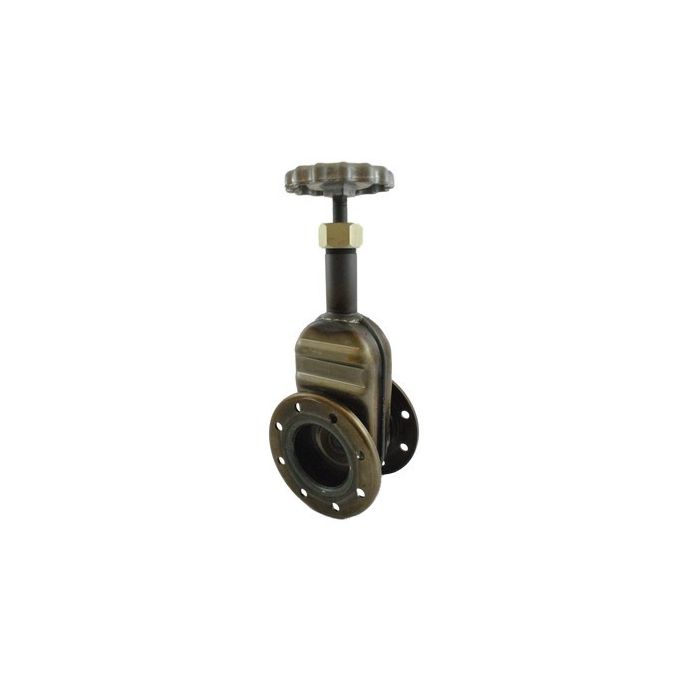

The Betts FG1013 is a 3-inch steel manual gate valve with a metal-to-metal seat, connecting a TTMA flange to a TTMA flange.
The Betts FG1013 Gate Valve is an economical, manually operated external stop valve with a double-action hand wheel for efficient closure. It features a 316 stainless steel disc for corrosion resistance and an adjustable packing nut with woven PTFE-infused packing for easy stem adjustment. The metal-to-metal seat offers a durable seal, though it is more susceptible to wear and scratching than a replaceable o-ring seat design. This valve connects a TTMA flange to a TTMA flange and is constructed of steel body and stem components.
Technical Specs List
- Size: 3 inches
- Connection: TTMA Flange x TTMA Flange
- Body Material: Steel
- Stem Material: Steel
- Disc Material: 316 Stainless Steel
- Seat Type: Metal-to-metal
- Maximum Allowable Working Pressure: 50 psi (3.4 bar)
- Minimum Burst Pressure: 200 psi (13.8 bar)
- Temperature Range: -40F to 500F (-40C to 260C)
