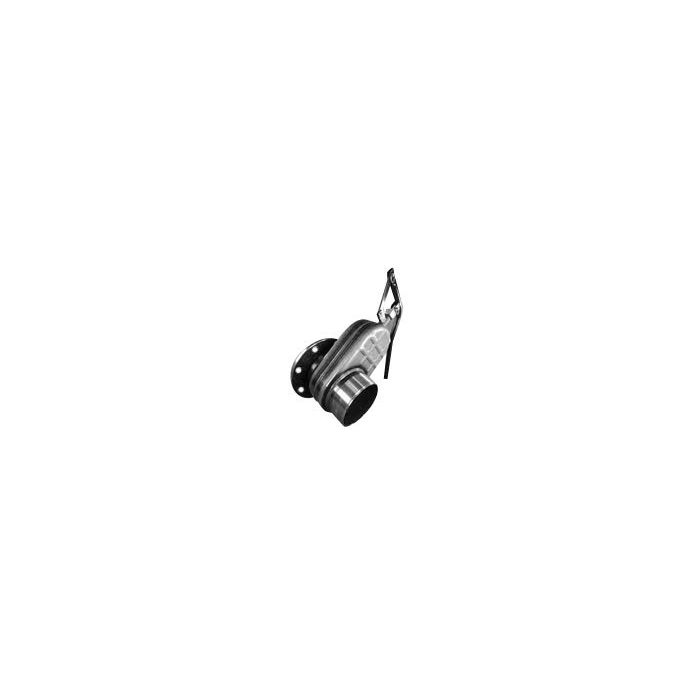

SV966MSM - Betts - 6" Steel Sliding Gate Valve Metal To Metal Seat Ansi Flg X Trd - LJI Part: SV966MSM

The Betts SV966MSM Sliding Valve is an economical, manually operated external stop valve that provides a quick open or close function. The 316 stainless steel gate offers premium corrosion resistance, and the adjustable packing nut with woven PTFE-infused packing allows for easy stem adjustments. The metal-to-metal seal offers advantages for many applications but is susceptible to wear and scratches; a replaceable o-ring seat sliding valve is available if a maintainable seal is required. This valve connects an ANSI flange to 6-inch threaded pipe and features a steel body with a 316 stainless steel stem and gate.

Technical Specs List

• Size: 6 inches
• Connection: ANSI Flange x 6-inch Threaded Pipe
• Body Material: Steel
• Stem and Gate Material: 316 Stainless Steel
• Seat Type: Metal-to-metal
• Weight: 40.0 pounds
• Flange Outer Diameter: 11.0 inches
• Flange Bolt Circle: 9.50 inches
• Bolt Holes: 8 holes, 0.88 inches diameter
• Maximum Allowable Working Pressure: 50 psi (3.4 bar)
• Minimum Burst Pressure: 200 psi (13.8 bar)
• Temperature Range: -40F to 500F (-40C to 260C)
