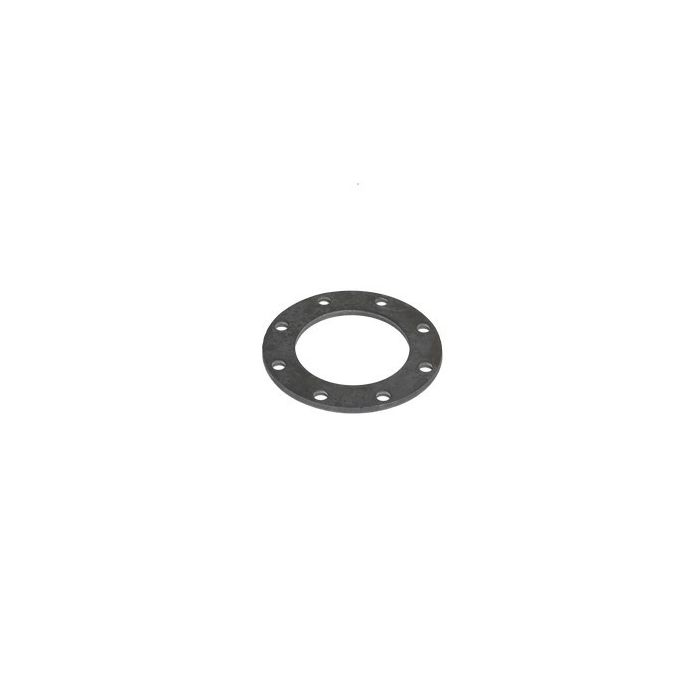

WF301MS - Betts - 3" Steel Weld Flange Ttma Pattern - LJI Part: WF301MS
SKU
WF301MS
SKU
WF301MS
$8.55
| Brand | : Betts |
|---|---|
| Size | : 3 Inch |
| Type | : Flange Weld |
| Material | : Steel |
| Vendor Number | : WF301MS |
The Betts WF301MS is a 3-inch steel weld flange with a TTMA bolt-hole pattern, achieving a 75 psi maximum allowable working pressure when properly welded.
Technical Specs List
- Size: 3 inches
- Material: Steel
- Thickness: 0.25 inches (6.4 mm)
- Inner Diameter: 3.56 inches (90.4 mm)
- Outer Diameter: 5.63 inches (143 mm)
- Bolt Circle: 4.88 inches (124 mm)
- Bolt Holes: 8 holes, 0.44 inches diameter
- Maximum Allowable Working Pressure: 75 psi (5.2 bar), dependent on proper weld procedure
