WF401AL - Betts - 4" Aluminum Weld Flange Ttma Pattern - LJI Part: WF401AL
SKU
WF401AL
SKU
WF401AL
$13.94
| Brand | : Betts |
|---|---|
| Size | : 4 Inch |
| Type | : Flange Weld |
| Material | : Aluminum |
| Vendor Number | : WF401AL |

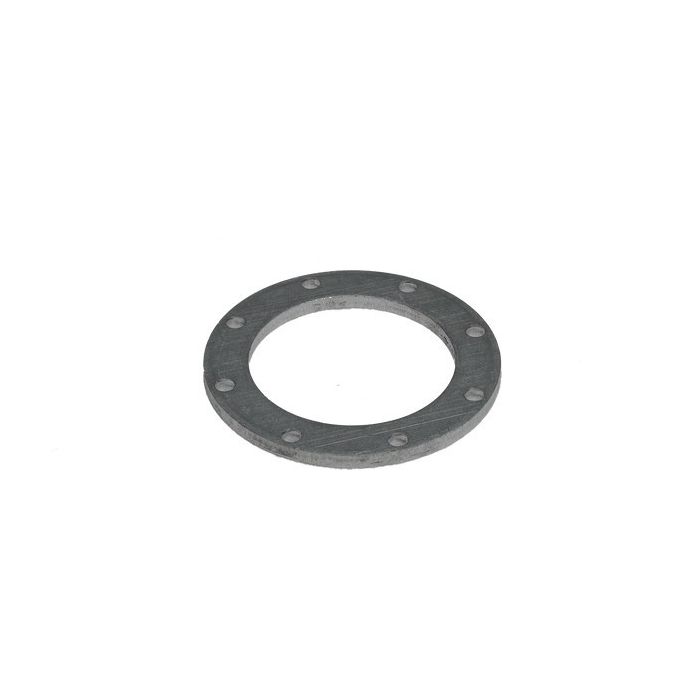

The Betts WF401AL is a 4-inch aluminum weld flange with a TTMA bolt-hole pattern, achieving a 50 psi maximum allowable working pressure when properly welded.
Technical Specs List
- Size: 4 inches
- Material: Aluminum
- Thickness: 0.375 inches (9.5 mm)
- Inner Diameter: 4.57 inches (116 mm)
- Outer Diameter: 6.63 inches (168.4 mm)
- Bolt Circle: 5.88 inches (149.4 mm)
- Bolt Holes: 8 holes, 0.44 inches diameter
- Weight: 0.62 pounds
- Maximum Allowable Working Pressure: 50 psi (3.4 bar), dependent on proper weld procedure
