WF401MS - Betts - 4" Steel Weld Flange Ttma Pattern - LJI Part: WF401MS
SKU
WF401MS
SKU
WF401MS
$16.03
| Brand | : Betts |
|---|---|
| Size | : 4 Inch |
| Type | : Flange Weld |
| Material | : Steel |
| Vendor Number | : WF401MS |

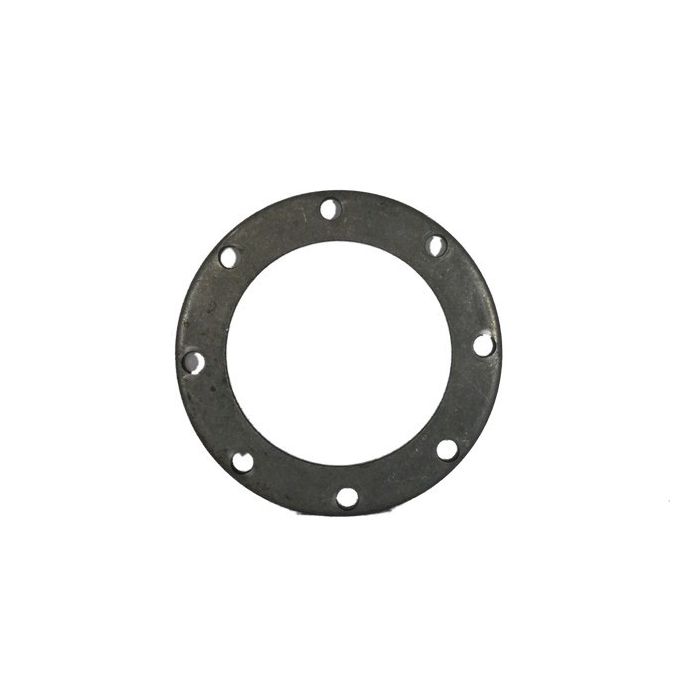

The Betts WF401MS is a 4-inch steel weld flange with a TTMA bolt-hole pattern, achieving a 75 psi maximum allowable working pressure when properly welded.
Technical Specs List
- Size: 4 inches
- Material: Steel
- Thickness: 0.31 inches (7.9 mm)
- Inner Diameter: 4.57 inches (116 mm)
- Outer Diameter: 6.63 inches (168.4 mm)
- Bolt Circle: 5.88 inches (149.4 mm)
- Bolt Holes: 8 holes, 0.44 inches diameter
- Weight: 1.49 pounds
- Maximum Allowable Working Pressure: 75 psi (5.2 bar), dependent on proper weld procedure
