WD301ALVB - Betts - 3" Aluminum Wet R Dri Valve Detent Model Viton Disc - LJI Part: WD301ALV
SKU
WD301ALV
SKU
WD301ALV
$119.72
| Brand | : Betts |
|---|---|
| Size | : 3 Inch |
| Type | : Valves |
| Material | : Aluminum |
| Vendor Number | : WD301ALVB |

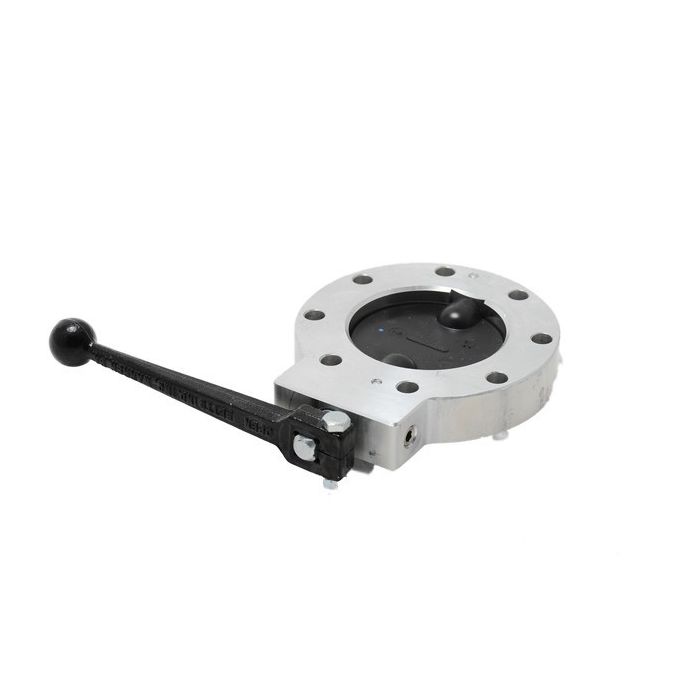

The Betts WD301ALVB is a 3-inch aluminum Wet-R-Dri butterfly valve, manually operated, TTMA detent model, with a Viton B disc, rated for 75 psi.
The Betts WD301ALVB Wet-R-Dri Valve is a lightweight, compact quarter-turn in-line stop valve designed for handling liquid, gaseous, or dry products. The manual detent model provides a positive stop in the open and closed positions, along with a detent spring and ball that assist in holding the disc securely in place. The valve features an aluminum body with a Viton B (FKM) disc and standard drilling that fits TTMA recommended standards.
Technical Specs List
- Size: 3 inches
- Connection: TTMA Flange
- Body Material: Aluminum
- Disc Material: Viton B (FKM)
- Body Thickness: 1-1/8 inches
- Maximum Working Pressure: 75 psi
- Temperature Range: 9F to 400F (-13C to 204C)
