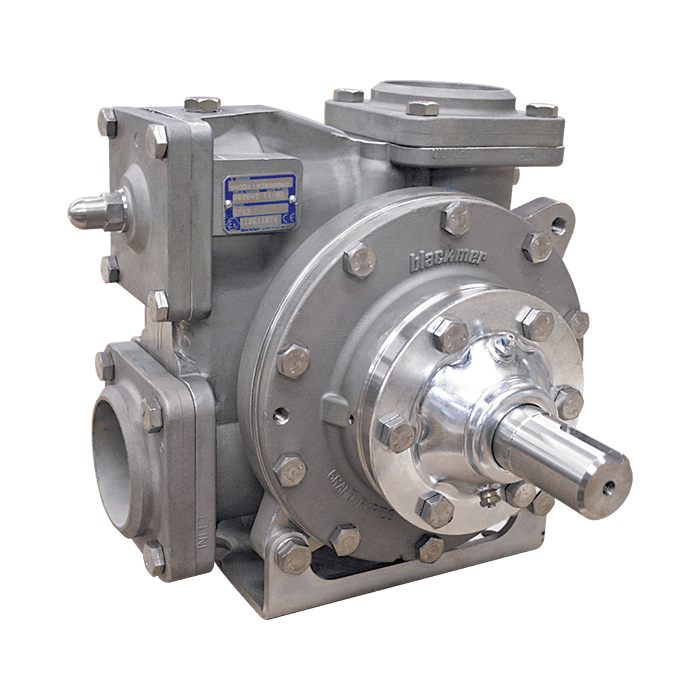

STX1220A - Blackmer - 2-inch High Speed DEF Sliding Vane Pump - LJI Part: STX1220A
| Brand | : Blackmer |
|---|---|
| Size | : 2 Inch |
| Type | : Pump |
| Material | : Cast Iron |
| Vendor Number | : STX1220A |
The Blackmer STX1220A is a 2-inch, high-speed 316 stainless steel truck-mounted sliding vane pump designed for loading and off-loading applications involving solvents, chemicals, sulfates, vegetable oils, urea and acids. This self-priming pump achieves a maximum speed of 1,200 rpm with flow rates from 45 to 92 gpm. The STX1220A features a double-ended shaft for clockwise or counterclockwise rotation, external ball bearings, non-metallic Duravanes, and Blackmer PTFE mechanical seals. With extended dry run capability, line-stripping performance, and an adjustable relief valve, this pump delivers reliable high-speed operation for demanding fluid transfer applications.
- Flow Rate Range: 45 to 92 gpm (171 to 348 L/min)
- Port Size: 2 inches NPT threaded
- Maximum Differential Pressure: 125 psi (8.6 bar)
- Maximum Working Pressure: 175 psi (12.1 bar)
- Speed Range: 700 to 1,200 RPM
- Viscosity Range: 0.2 to 22 cP
- Max Temperature: 240F (115C)
- Construction Material: 316 stainless steel
- O-Ring Material: Buna-N, FKM type
- Vanes: Non-metallic Duravanes
