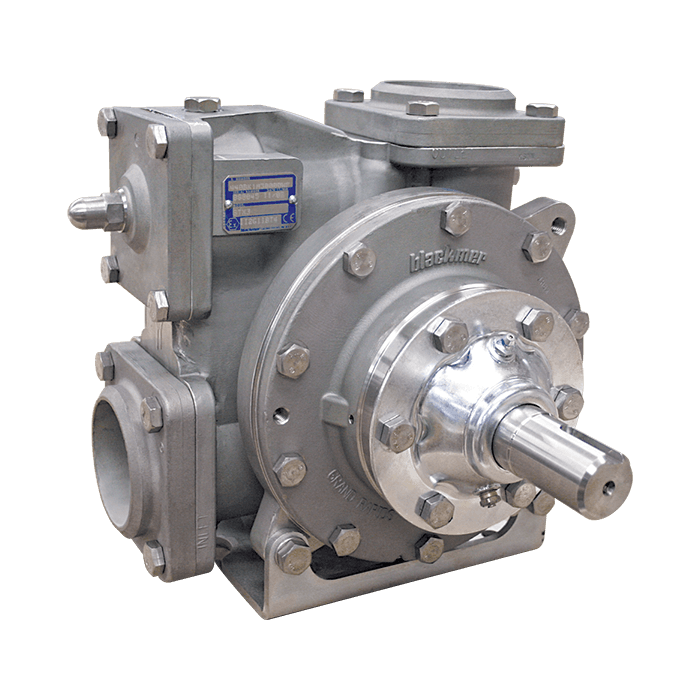

STX2A - Blackmer - 2-inch SST Sliding Vane Pump - LJI Part: STX2A

SKU
STX2A
SKU
STX2A
$10,467.42
Brand : Blackmer
Size : 2 Inch
Type : Pump
Material : Stainless Steel
Vendor Number : STX2A
Short Description:

The Blackmer STX2A is a 2-inch, 316 stainless steel truck-mounted sliding vane pump designed for loading and off-loading applications involving solvents, chemicals, sulfates, vegetable oils, urea and acids. It's flow rates range from 16 to 60 gpm, the STX2A offers extended dry run capability, line-stripping performance, and an adjustable relief valve for protection against excessive pressure. Additionally, this self-priming pump features a double-ended shaft for clockwise or counterclockwise rotation, external ball bearings, non-metallic Duravanes, and Blackmer chemical mechanical seals.

Details
  • Flow Rate Range: 16 to 60 gpm (61 to 227 L/min)
  • Port Size: 2-inch NPT threaded
  • Maximum Differential Pressure: 125 psi (8.6 bar)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Speed Range: 150 to 800 RPM
  • Viscosity Range: 0.2 to 990 cP
  • Temperature Range: -25F to 240F (-32C to 115C)
  • Construction Material: 316 stainless steel
  • O-Ring Material: Buna-N, FKM type
  • Vanes: Non-metallic Duravanes
