TXV3B - Blackmer - 3-inch High Volume Sliding Vane Pump - LJI Part: TXV3B
SKU
TXV3B
SKU
TXV3B
$4,753.92
| Brand | : Blackmer |
|---|---|
| Size | : 3 Inch |
| Type | : Pump |
| Material | : Cast Iron |
| Vendor Number | : TXV3B |
Short Description:

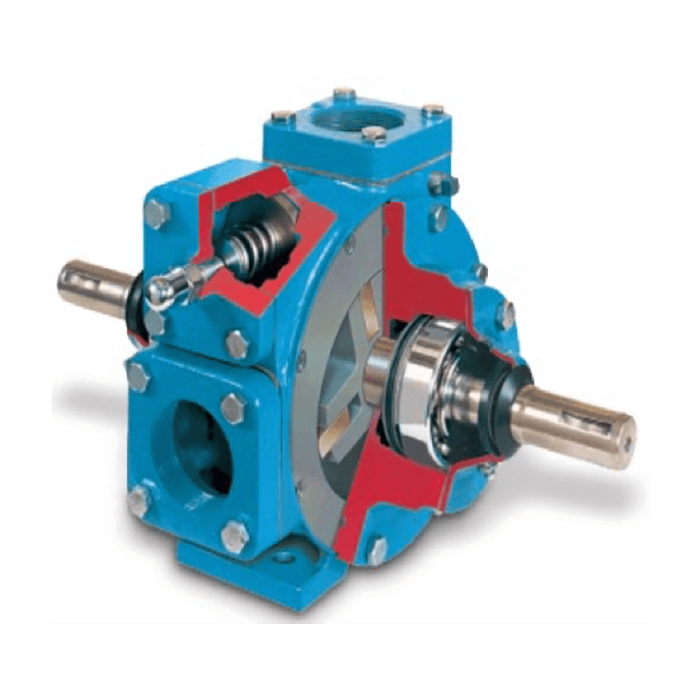

The Blackmer TXV3B is a 3-inch sliding vane pump featuring an open-rotor design specifically engineered for high-temperature transfer of thick, viscous fluids including asphalts, heavy oils, and industrial lubricants. This cast iron pump features bronze vanes and FKM elastomers for operation up to 375F with fluids up to 50,000 SSU viscosity. The double-ended shaft provides mounting flexibility with clockwise or counter-clockwise rotation capability, while external ball bearings and internal seals ensure reliable operation in demanding applications.
Details
Blackmer TXV3B Detailed Specifiations
- Port Size: 3 inches
- Maximum Temperature: 375F with bronze vanes
- Maximum Viscosity: 50,000 SSU (10,500 cP)
- Maximum Differential Pressure: 125 psi
- Maximum Working Pressure: 175 psi
- Vane Material: Bronze standard
- Seal Material: FKM elastomers
