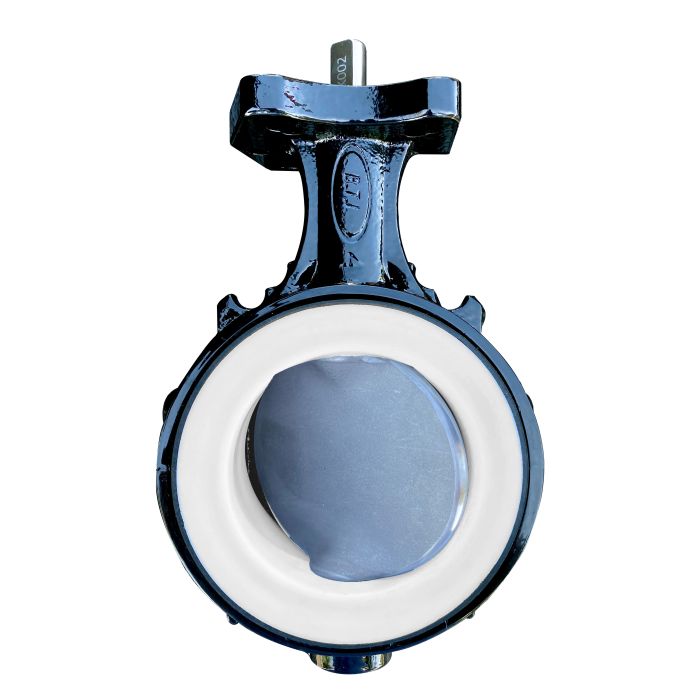

12-699-822531 - Bti - 12 inch 699 WAFER - S/S DISC - WHITE BUNA SEAT Butterfly Valve - LJI Part: 12-699-822531
SKU
12-699-822531
SKU
12-699-822531
$812.43
| Brand | : Bti |
|---|---|
| Size | : 12 Inch |
| Type | : Valves |
| Material | : 255 Duplex Stainless Steel |
| Vendor Number | : 12-699-822531 |
Short Description:
The BTI 12-699-822531 is a 12-inch Series 699/692 sanitary butterfly valve with a white Buna-N seat, designed for chemical and food-safe applications in a wafer body style. The disc and stem are constructed from 255 duplex stainless steel, which is more corrosion resistant than 316SS and approximately twice as strong, allowing for a thinner disc profile without sacrificing structural integrity. Acetal stem bushings on the top and bottom provide seize-free operation, and the precision-machined top plate accepts manual handle kits or actuators via standard ISO patterns.
Details
- Size: 12 inches
- Body Styles: Wafer
- Seat Material: White Buna-N (FDA Nitrile)
- Disc/Stem Material: 255 duplex stainless steel
- Body Material: Ductile iron
- Flange Compatibility: TTMA, ANSI/ASME 125 and 150, lightweight flanges
- Top Plate: ISO standard drilling pattern; compatible with manual handles or actuators
- Interchangeability: Ultraflo 399/392, Sure Seal 899/892, Keystone 999/992, ABZ 909/919
