3-692-822515 - Bti - 3 inch 692 LUG - S/S DISC - EPDM SEAT Butterfly Valve - LJI Part: 3-692-822515

SKU
3-692-822515
SKU
3-692-822515
$188.77
Brand : Bti
Size : 3 Inch
Type : Valves
Material : 255 Duplex Stainless Steel
Vendor Number : 3-692-822515

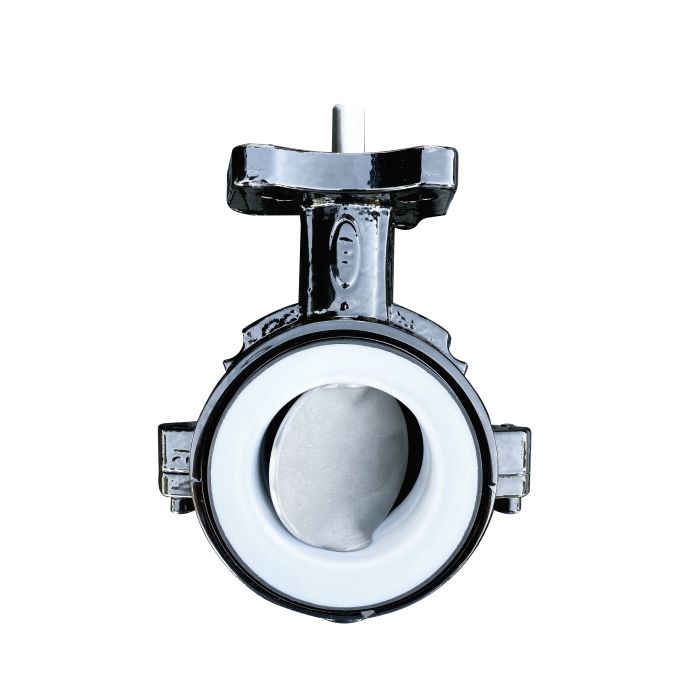

Short Description: The BTI 3-692-822515 is a 3-inch Series 692 sanitary butterfly valve in a lug body style with an EPDM seat, designed for chemical and food-safe applications. The disc and stem are constructed from 255 duplex stainless steel, which is more corrosion resistant than 316SS and approximately twice as strong, allowing for a thinner disc profile without sacrificing structural integrity. Acetal stem bushings on the top and bottom provide seize-free operation, and the precision-machined top plate accepts manual handle kits or actuators via standard ISO patterns.
Details
  • Size: 3 inches
  • Body Style: Lug
  • Seat Material: EPDM
  • Disc/Stem Material: 255 duplex stainless steel
  • Body Material: Ductile iron
  • Flange Compatibility: ANSI/ASME 125 and 150
  • Top Plate: ISO standard drilling pattern; compatible with manual handles or actuators
  • Interchangeability: Ultraflo 399/392, Sure Seal 899/892, Keystone 999/992, ABZ 909/919
