6-692-508650 - Bti - 6 inch 692 LUG - TEFLON DISC - TEFLON SEAT Butterfly Valve - LJI Part: 6-692-508650
SKU
6-692-508650
SKU
6-692-508650
$519.96
| Brand | : Bti |
|---|---|
| Size | : 6 Inch |
| Type | : Valves |
| Material | : 255 Duplex Stainless Steel |
| Vendor Number | : 6-692-508650 |
Short Description:

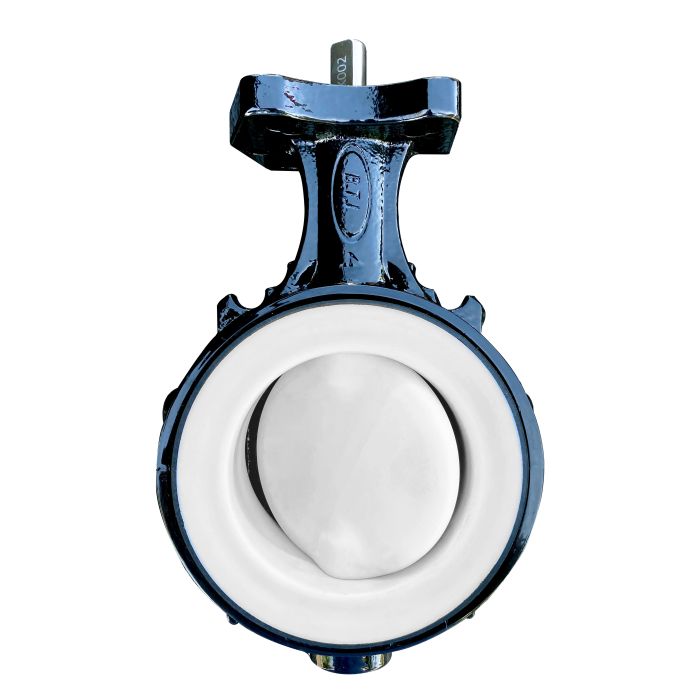

The BTI 6-692-508650 is a 6-inch Series 692 sanitary butterfly valve in a lug body style with a PTFE (Teflon) seat, designed for chemical and food-safe applications. The disc and stem are constructed from 255 duplex stainless steel, which is more corrosion resistant than 316SS and approximately twice as strong, allowing for a thinner disc profile without sacrificing structural integrity. Acetal stem bushings on the top and bottom provide seize-free operation, and the precision-machined top plate accepts manual handle kits or actuators via standard ISO patterns.
Details
- Size: 6 inches
- Body Style: Lug
- Seat Material: PTFE (Teflon)
- Disc/Stem Material: 255 duplex stainless steel
- Body Material: Ductile iron
- Flange Compatibility: ANSI/ASME 125 and 150
- Top Plate: ISO standard drilling pattern; compatible with manual handles or actuators
- Interchangeability: Ultraflo 399/392, Sure Seal 899/892, Keystone 999/992, ABZ 909/919
