8-699-822650 - Bti - 8 inch 699 WAFER - S/S DISC - TEFLON SEAT Butterfly Valve - LJI Part: 8-699-822650
SKU
8-699-822650
SKU
8-699-822650
$558.50
| Brand | : Bti |
|---|---|
| Size | : 8 Inch |
| Type | : Valves |
| Material | : 255 Duplex Stainless Steel |
| Vendor Number | : 8-699-822650 |
Short Description:

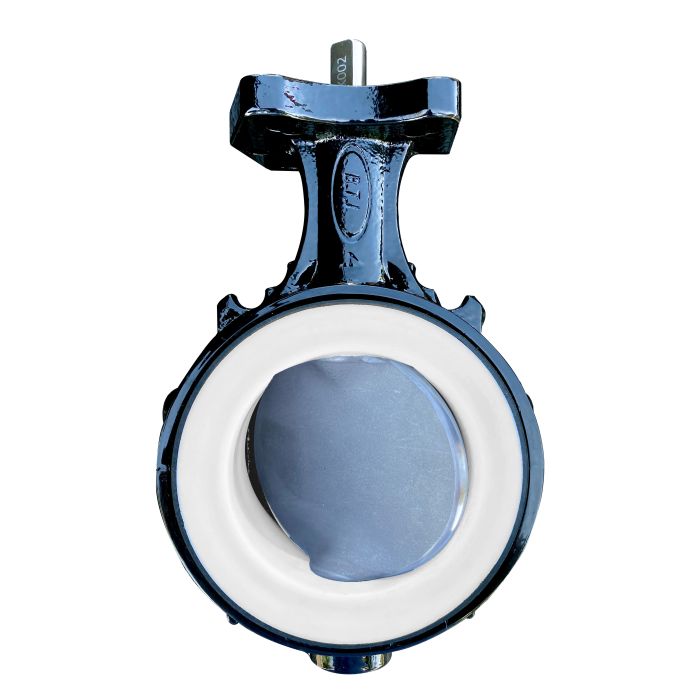

The BTI 8-699-822650 is an 8-inch Series 699 sanitary butterfly valve in a wafer body style with a PTFE (Teflon) seat, designed for chemical and food-safe applications. The disc and stem are constructed from 255 duplex stainless steel, which is more corrosion resistant than 316SS and approximately twice as strong, allowing for a thinner disc profile without sacrificing structural integrity. Acetal stem bushings on the top and bottom provide seize-free operation, and the precision-machined top plate accepts manual handle kits or actuators via standard ISO patterns.
Details
- Size: 8 inches
- Body Style: Wafer
- Seat Material: PTFE (Teflon)
- Disc/Stem Material: 255 duplex stainless steel
- Body Material: Ductile iron
- Flange Compatibility: TTMA, ANSI/ASME 125 and 150, lightweight flanges
- Top Plate: ISO standard drilling pattern; compatible with manual handles or actuators
- Interchangeability: Ultraflo 399/392, Sure Seal 899/892, Keystone 999/992, ABZ 909/919
