1010-7000 - Chandler - 20" Steel Lid Manway with 6" Steel Neck - LJI Part: 1010-7000
| Brand | : Chandler |
|---|---|
| Size | : 20 Inch |
| Type | : Manholes |
| Material | : Steel |
| Vendor Number | : 1010-7000 |

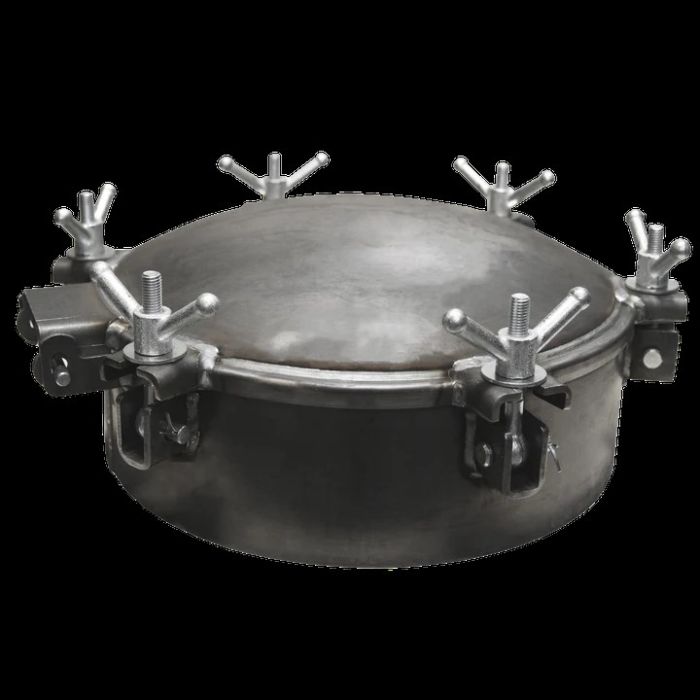

The Chandler 1010-7000 is a 20-inch steel dome lid manway with a 6-inch steel weld neck and 6-wingnut latching, designed for vacuum tanks operating under maximum vacuum and low pressure.
The Chandler 1010-7000 Manway is a non-code, gasket-in-lid dome design built for vacuum tanks operating under maximum vacuum and low pressure conditions, trusted by top OEM vacuum truck manufacturers. The 6-wingnut latching design is well suited for mounting on top of the vacuum tank. It features a 20-inch steel lid with a 6-inch steel weld neck, and comes standard with an assembled wingnut and hinge assembly along with a Buna gasket. Manways are available assembled or unassembled, with unassembled units shipping with the gasket, wingnut assemblies, and hardware bagged separately.
Technical Specs List
- Lid Diameter: 20 inches
- Neck Size: 6 inches
- Lid Material: Steel
- Neck Material: Steel
- Gasket Material: Buna
- Wingnut Configuration: 6-wingnut
- Base: 1/4-inch weldable steel base
