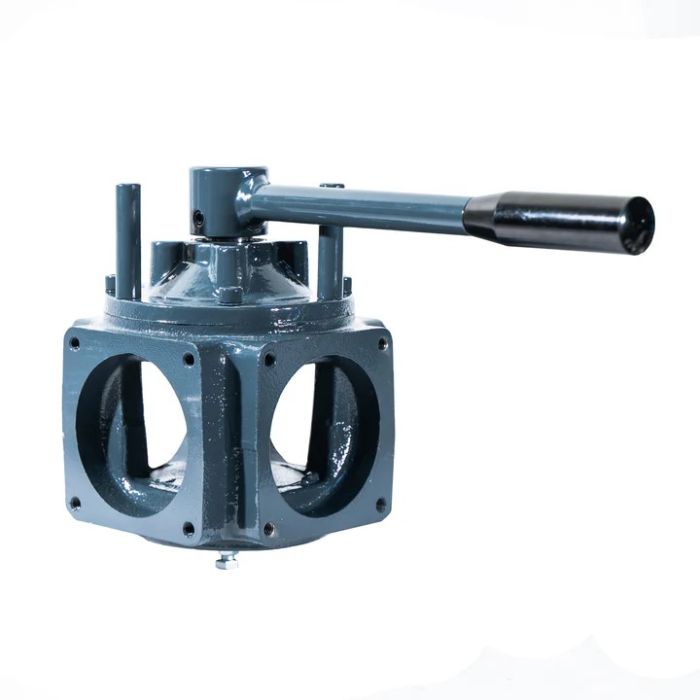

2120-0000-NF - Chandler - 3-inch Jurop 4-Way NPT Valve without Flanges - LJI Part: 2120-0000-NF

The Chandler 2120-0000-NF Jurop 4-Way Valve features a durable cast iron body with four 3-inch female threaded NPT ports, allowing directional control of fluid flow to multiple outlets in a vacuum or pressure system. It is designed for operating pressures ranging from -1 to +4 bar, with a maximum pneumatic pressure rating of 8 bar (116 psi). This version does not include mounting flanges.

Technical Specs List

• Size: 3 inches
• Body Material: Cast Iron
• Port Style: Female NPT (4 ports)
• Operating Pressure Range: -1 to +4 bar
• Maximum Pneumatic Pressure: 8 bar (116 psi)
• Flanges: Not included
