FAN420CW - Chandler - Battioni Fan 420 Vacuum Pump - LJI Part: FAN420CW
| Brand | : Chandler |
|---|---|
| Type | : Pump |
| Vendor Number | : FAN420/CW |

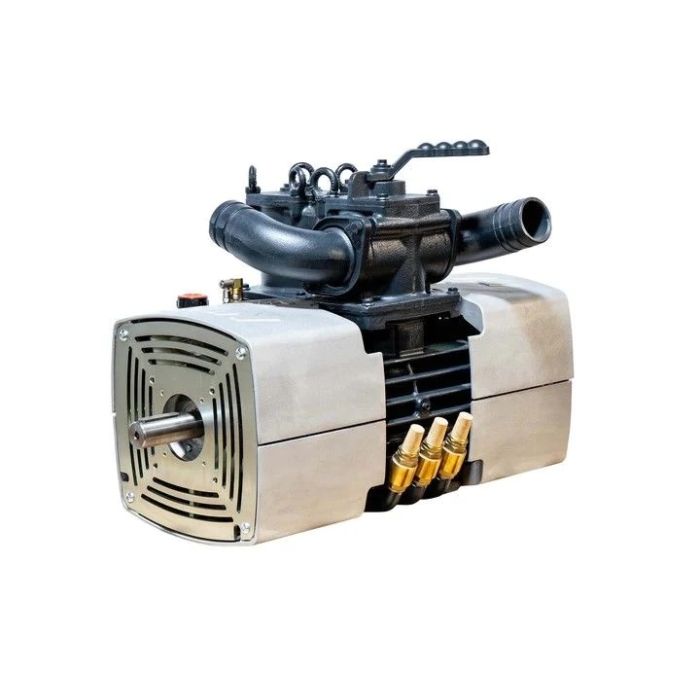

The Chandler FAN420CW is a Battioni FAN 420 clockwise-rotation vacuum pump delivering up to 423 CFM, built for heavy-duty vacuum truck applications.
The Battioni FAN 420 Vacuum Pump is engineered for high efficiency and heavy-duty applications. Cooling is provided by fresh air forced through high-efficiency fans, with an aluminum conveyor and body fin profile designed for heavy-duty performance. The pump features the Crash Protection System, a sliding flange mechanism that prevents housing or rotor damage in the event of a blade crash, along with automatic lubrication. It can also be equipped with an automatic air injection cooling system for continuous operation at 91 percent vacuum. This model, FAN420CW, rotates clockwise.
Technical Specs List
- Rotation: Clockwise (CW)
- Maximum Flow Rate: 423 CFM
- Maximum Vacuum: 95 percent (28.5 inHg)
- Cooling System: High-efficiency fans, with optional automatic air injection
- Protection Feature: Crash Protection System with sliding flanges
- Lubrication: Automatic
