1014-0900 - Chandler - 12-Inch Low Profile Primary Shutoff - LJI Part: 1014-0900
SKU
1014-0900
SKU
1014-0900
$578.61
| Brand | : Chandler |
|---|---|
| Size | : 12 Inch |
| Material | : Steel |
| Vendor Number | : 1014-0900 |

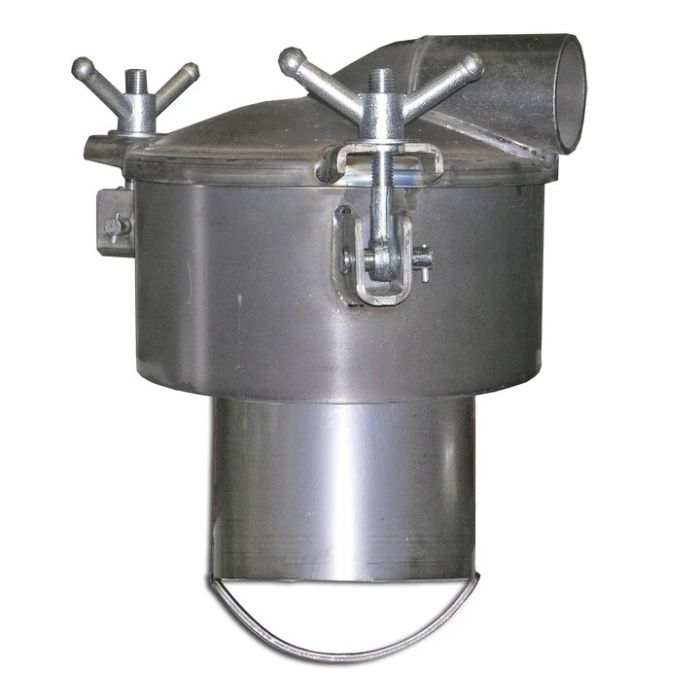

The Chandler 1014-0900 is a 12-inch low profile primary shutoff with a 6-inch mild steel neck, mild steel lid, and a 3-inch opening, designed to minimize vacuum tank height.
The Chandler 1014-0900 Low Profile Primary Shutoff is engineered to minimize overall vacuum tank height while ensuring positive shutoff. It features a 6-inch neck, an 8-inch ball cage, and a 6-inch stainless steel ball for reliable performance at 385 to 450 CFM. The weldable base measures 12.25 inches O.D., and the design offers easy access for quick clean-out. This model has a mild steel neck and lid with a 3-inch opening.
Technical Specs List
- Shutoff Diameter: 12 inches
- Neck Length: 6 inches
- Neck Material: Mild Steel
- Lid Material: Mild Steel
- Ball Cage Size: 8 inches
- Ball Material and Size: 6-inch Stainless Steel
- Opening Size: 3 inches
- Base O.D.: 12.25 inches
- Flow Rate: 385 to 450 CFM
