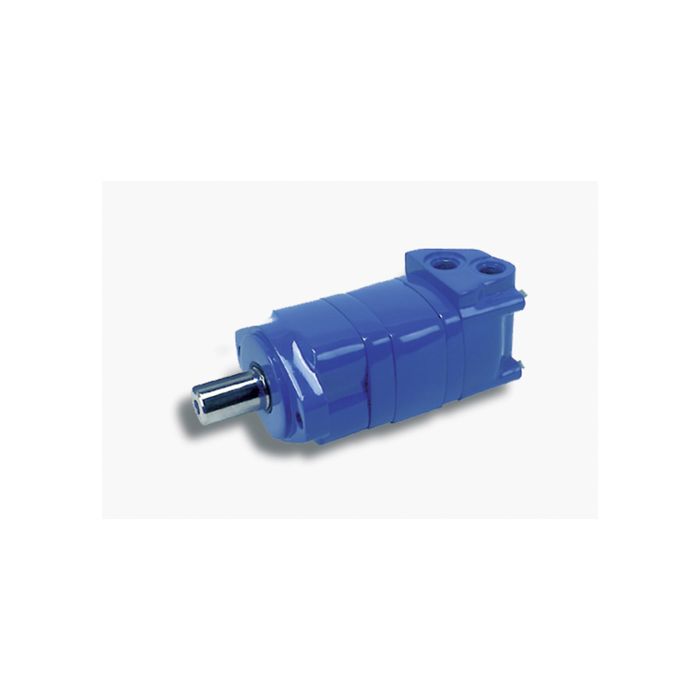

104-1038-006 - Char-Lynn Hydraulic Motor - LJI Part: 104-1038
SKU
104-1038
SKU
104-1038
$1,194.29
| Brand | : Char-Lynn |
|---|---|
| Type | : Hydraulic Motor |
| Material | : Cast Iron |
| Vendor Number | : 104-1038-006 |
Short Description:
The Char-Lynn 104-1038 is a low speed, high torque hydraulic motor featuring a 6.2 cubic inch displacement per revolution and a geroler disc valve design. This hydraulic motor delivers 2630 in-lbs continuous torque and 3950 in-lbs intermittent torque with operating pressures up to 3000 PSI continuous and 4000 PSI intermittent. The motor features a 1-inch diameter by 2-inch keyed shaft, 2-bolt SAE A mount, and tapered roller bearings for superior axial and radial load capacity in tank trailer applications.
Details
- Displacement: 6.2 cubic inches per revolution
- Continuous Pressure: 3000 PSI
- Intermittent Pressure: 4000 PSI
- Continuous Torque: 2630 in-lbs
- Intermittent Torque: 3950 in-lbs
- Continuous Speed: 742 RPM
- Intermittent Speed: 924 RPM
- Continuous Flow: 20 GPM
- Intermittent Flow: 25 GPM
- Shaft: 1 inch diameter x 2 inches keyed
- Mount: 2-bolt SAE A with 3-1/4 inch pilot
- Weight: 28 pounds
