8HF8 - Dixon - 1 inch-11-1/2 Poppet Valve Female NPTF Coupler - LJI Part: 8HF8
SKU
8HF8
SKU
8HF8
$62.32
| Brand | : Dixon |
|---|---|
| Size | : 1 Inch |
| Type | : Coupler |
| Material | : Steel |
| Vendor Number | : 8HF8 |
Short Description:

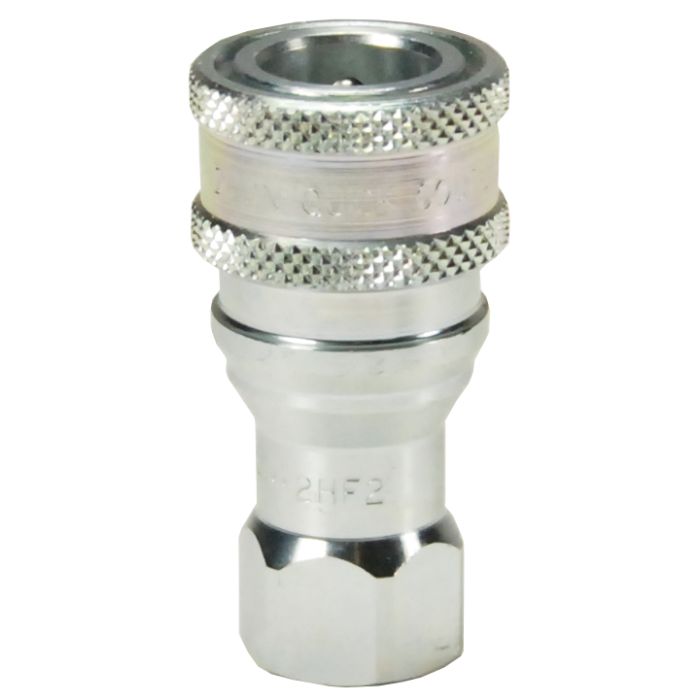

This 1 inch-11-1/2 H-Series ISO-B Poppet Valve Female NPTF Coupler from Dixon is designed as a rugged poppet style shut-off valve. It features stainless steel balls, springs, and retaining rings, hardened steel coupler sleeves, and crimped valve seals. Also, it meets the dimensional requirements of ISO 7241 Series B. Contact Littlejohn if you require a specific option like specialized seals.
Details
- Maximum Operating Pressure: 4000 PSI (275 bar)
- Weight: 1.795 pounds
- Break Quantity: 1
- Optional Package/Box Quantity: 1
- Material: Steel
- Maximum OD: 2.49 inches (63.2 mm)
- Thread: Female NPTF
- Body Size: 1 inch
- Temperature Range: -40 F to 250 F (-40 C to 121 C)
- Burst Pressure: 16000 PSI (1100 bar)
- Thread Size: 1 inch-11-1/2
- Length: 4.13 inches (104.9 mm)
- Hex: 1-5/8 inches
