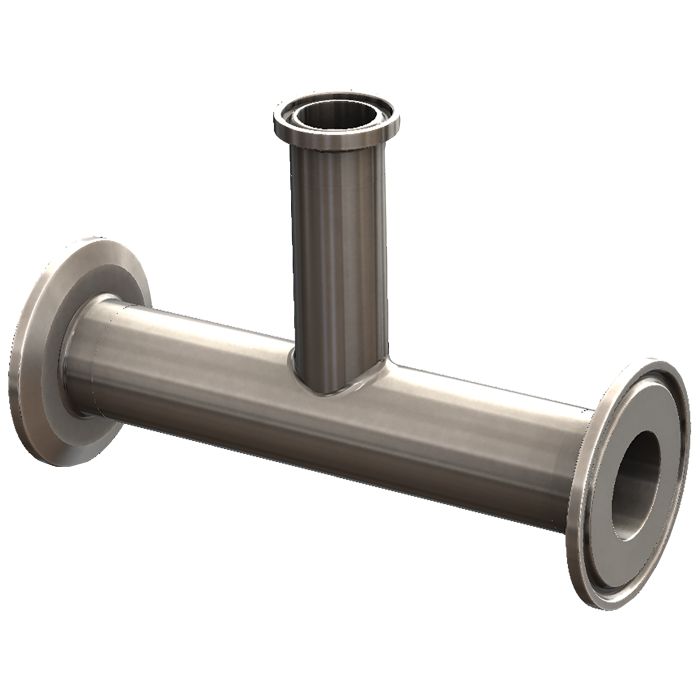

T7RMP-250050PM - Dixon 2-1/2" x 1/2" - BioPharm Clamp x Clamp x Clamp Reducing Tee PM Finish - LJI Part: T7RMP-250050PM

The Dixon T7RMP-250050PM BioPharm Reducing Tee is a High Purity fitting commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage applications. It reduces from a 2-1/2-inch run to a 1/2-inch clamp outlet, with all three connections in clamp style. The fitting is constructed of 316L stainless steel and manufactured to meet the latest edition of the ASME BPE International Standard for Bioprocessing Equipment, with product markings including job number, material grade, part number, heat number, surface finish code, and ASME BPE certification. Each fitting ships capped to prevent damage and contamination, with a Material Test Report (MTR) traceable through the job number included in a resealable bag.

Technical Specs List

• Size: 2-1/2 inches x 1/2 inches
• Connection Style: Clamp x Clamp x Clamp
• Material: 316L Stainless Steel
• Surface Finish: PM (SF4)
• Standard: ASME BPE
