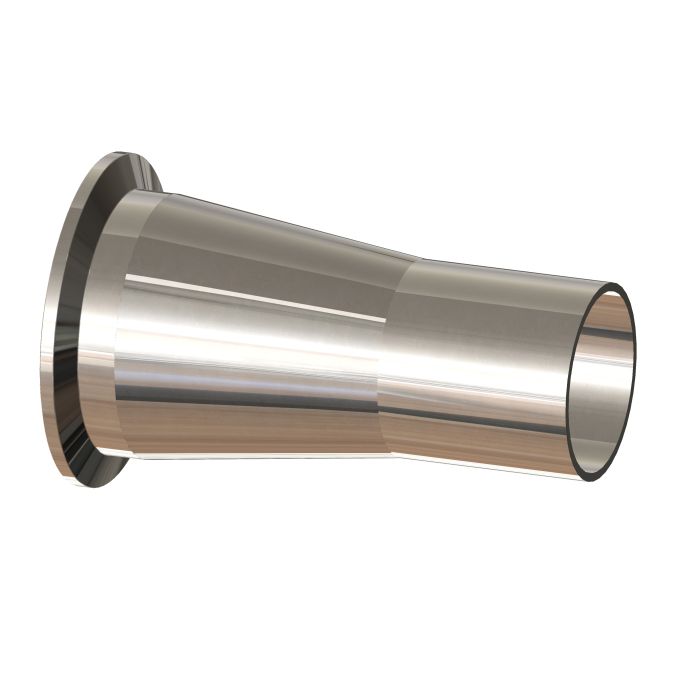

T31M-250075PL - Dixon 2-1/2" X 3/4" - BioPharm Clamp x Weld Concentric Reducer Stainless - LJI Part: T31M-250075PL

The Dixon T31M-250075PL BioPharm Concentric Reducer is a High Purity fitting commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage applications. It reduces from a 2-1/2-inch clamp end to a 3/4-inch weld end, maintaining a centered flow path through the transition. The fitting is constructed of 316L stainless steel with dimensions meeting all orbital welding specifications with controlled sulphur, manufactured to meet the latest edition of the ASME BPE International Standard for Bioprocessing Equipment and 3-A Sanitary Standards Number 63-03. Each fitting ships capped to prevent damage and contamination, with a Material Test Report (MTR) traceable through the job number included in a resealable bag.

Technical Specs List

• Size: 2-1/2 inches x 3/4 inches
• Connection Style: Clamp x Weld
• Reducer Type: Concentric
• Material: 316L Stainless Steel
• Surface Finish: PL (SF1)
• Standard: ASME BPE, 3-A Sanitary Standard 63-03
