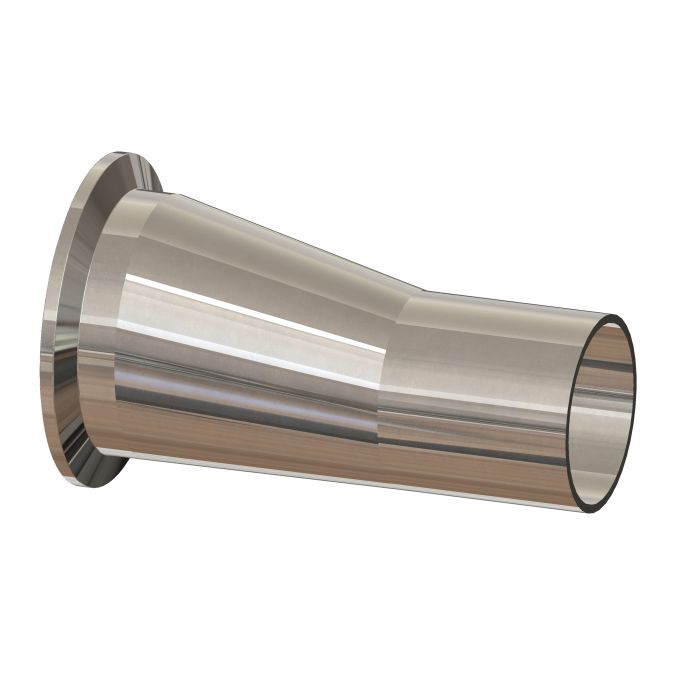

T32M-250100PL - Dixon 2-1/2" X 1" - BioPharm Clamp x Weld Eccentric Reducer - LJI Part: T32M-250100PL

The Dixon T32M-250100PL BioPharm Eccentric Reducer is a High Purity fitting commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing, and beverage applications. It reduces from a 2-1/2-inch clamp end to a 1-inch weld end, with an offset transition that keeps one side of the flow path flush, aiding drainage in horizontal runs. The fitting is constructed of 316L stainless steel with dimensions meeting all orbital welding specifications with controlled sulphur, manufactured to meet the latest edition of the ASME BPE International Standard for Bioprocessing Equipment and 3-A Sanitary Standards Number 63-03. Each fitting ships capped to prevent damage and contamination, with a Material Test Report (MTR) traceable through the job number included in a resealable bag.

Technical Specs List

• Size: 2-1/2 inches x 1 inch
• Connection Style: Clamp x Weld
• Reducer Type: Eccentric
• Material: 316L Stainless Steel
• Surface Finish: PL (SF1)
• Standard: ASME BPE, 3-A Sanitary Standard 63-03
