14WLMP-G300 - Dixon 3" - Sanitary Light Duty Tank Weld Ferrule Stainless - LJI Part: 14WLMP-G300
SKU
14WLMP-G300
SKU
14WLMP-G300
$28.26
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch |
| Type | : Ferrules |
| Vendor Number | : 14WLMP-G300 |

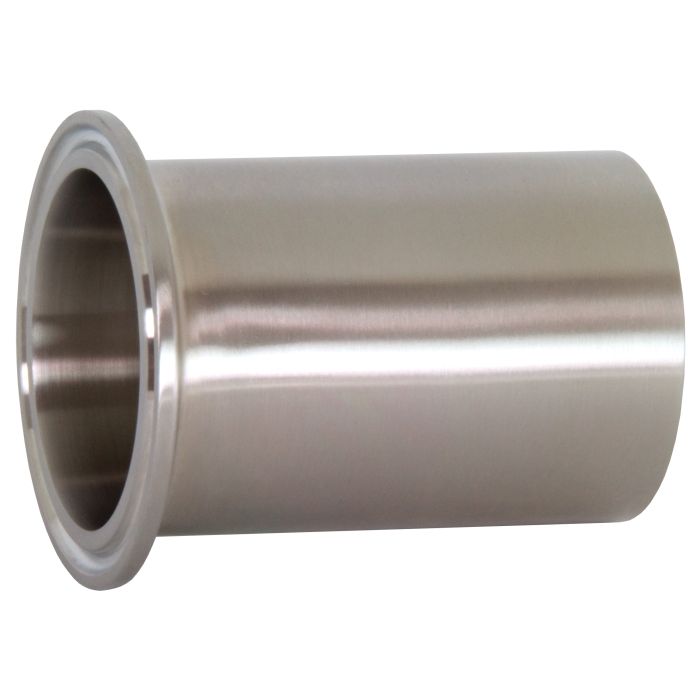

The Dixon 14WLMP-G300 is a 3-inch light duty tank weld ferrule, constructed of 304 stainless steel, meeting 3-A Sanitary Standard 63-03.
The Dixon 14WLMP-G300 Tank Weld Ferrule is a light duty sanitary fitting designed to weld directly onto a tank or vessel, providing a clamp connection point for sanitary hose or tube fittings. Built with lighter duty walls suited for tank welding, it provides a leak-resistant seal and carries a maximum operating pressure rating of 250 psi. It is constructed of 304 stainless steel and meets 3-A Sanitary Standards Number 63-03 (Authorization Number 621) for food, beverage, and dairy applications.
Technical Specs List
- Tube O.D.: 3 inches
- Material: 304 Stainless Steel
- Overall Length: 4.00 inches
- Maximum Operating Pressure: 250 psi
- Standard: 3-A Sanitary Standard 63-03
