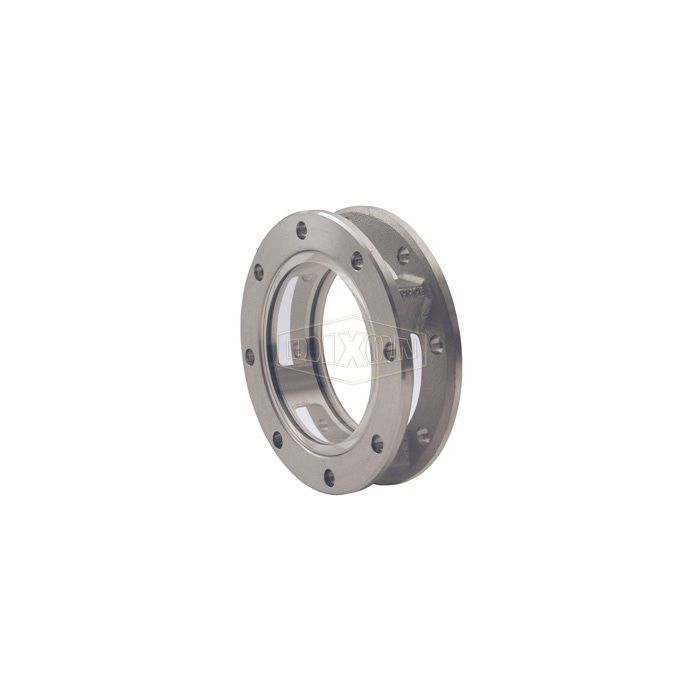

5200-SFI-3 - Dixon - 3-inch Short Sight Glass with TTMA Flange - LJI Part: 5200SFI3
SKU
5200SFI3
SKU
5200SFI3
$93.05
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch |
| Material | : Aluminum |
| Vendor Number | : 5200-SFI-3 |
Short Description:
The Dixon 5200-SFI-3 is a short sight flow indicator with a 3-inch TTMA flange. It is compatible with gasoline, diesel, and biofules up to E100 and B100 ratings. It is made from cast aluminum and features an acrylic sight glass in addition to a Baylast O-ring and retainer ring. It allows for straightforward visual identification of fuel grade prior to valve opening and functaions with flanged butterfly valves found on gasoline tank trucks.
Details
Dixon 5200-SFI-3 Detailed Specifications
- Flange Size: 3-inch TTMA
- Width: 1-3/4 inches
- ID: 3-1/2 inches
- Body Material: Cast Aluminum
- Sight Glass Material: Acrylic
- Seals: Baylast
- Fuel Compatablity: Gasoline, Diesel, up to E100 & B100 Biofules
- Maximum Flange Bolt Torque: 200 inch-pounds
