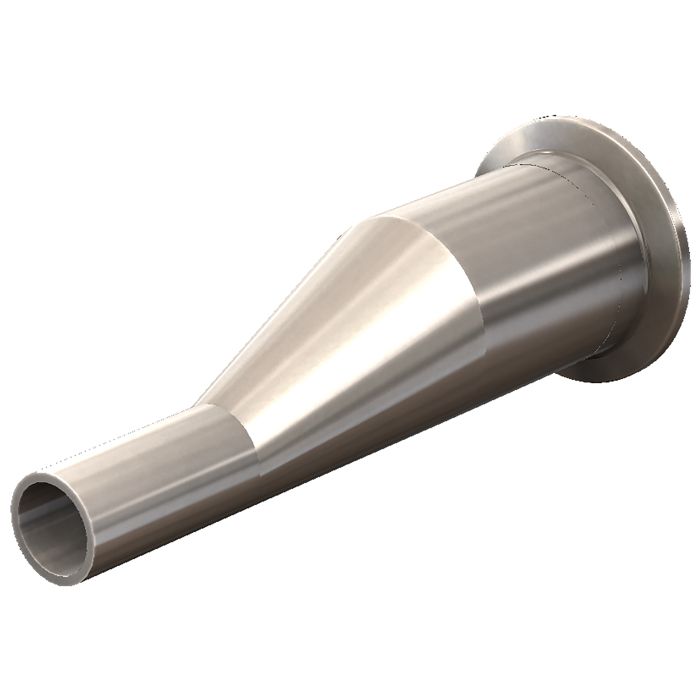

T32M-300150PM - Dixon 3" X 1-1/2" - BioPharm Clamp x Weld Eccentric Reducer PM Finish - LJI Part: T32M-300150PM
SKU
T32M-300150PM
SKU
T32M-300150PM
$200.49
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1-1/2 Inch |
| Type | : Clamp x Weld |
| Vendor Number | : T32M-300150PM |
ASME BPE eccentric reducer stepping 3" tube OD to 1-1/2" on clamp x weld connections. 316L, PM finish, SF4, MTR included.
Pm finish, sf4, 316L, clamp x weld ends, 3" down to 1-1/2". Each fitting is marked with its job number, heat number and finish code, and arrives capped.
- Size: 3" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
