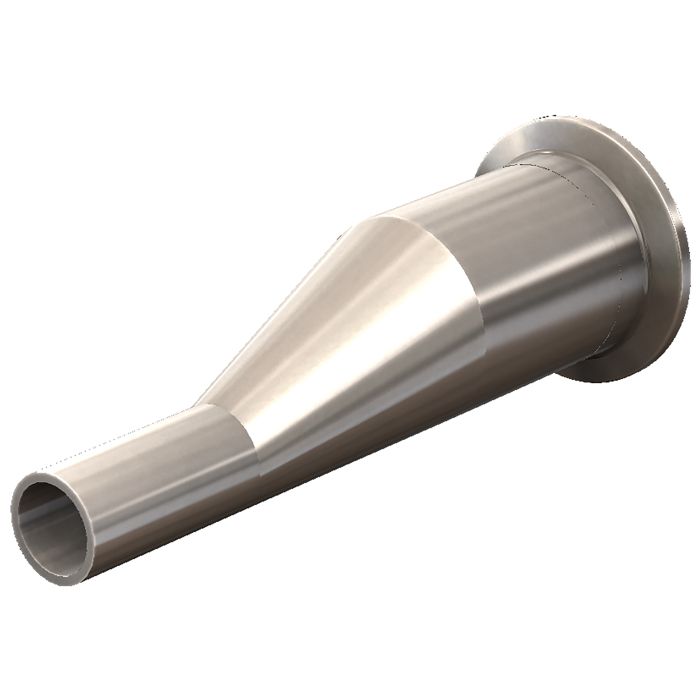

T32M-300100PL - Dixon 3" X 1" - BioPharm Clamp x Weld Eccentric Reducer PL Finish - LJI Part: T32M-300100PL
SKU
T32M-300100PL
SKU
T32M-300100PL
$168.55
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1 Inch |
| Type | : Clamp x Weld |
| Vendor Number | : T32M-300100PL |
ASME BPE eccentric reducer stepping 3" tube OD to 1" on clamp x weld connections. 316L, PL finish, SF1 (32 Ra OD, 20 Ra ID), MTR included.
Pl finish, sf1 (32 ra od, 20 ra id), 316L, clamp x weld ends, 3" down to 1". Each fitting is marked with its job number, heat number and finish code, and arrives capped.
- Size: 3" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
