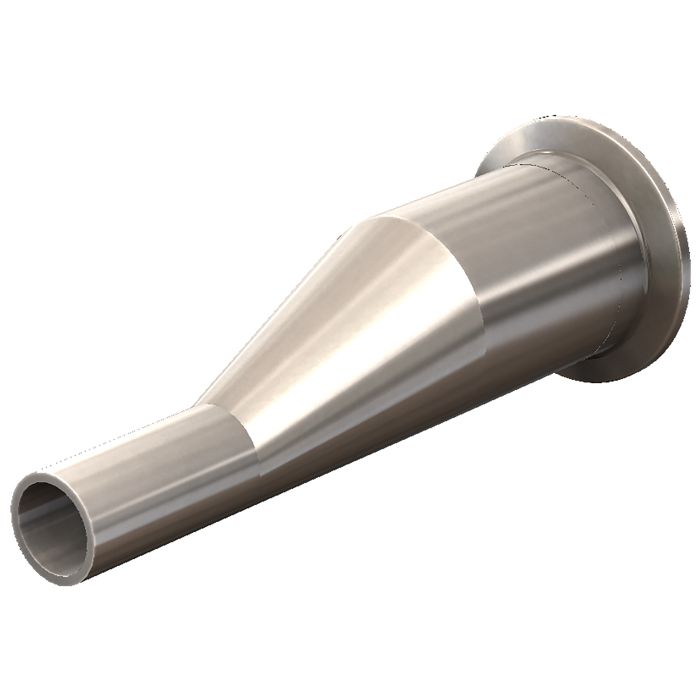

T32M-300100PM - Dixon 3" X 1" - BioPharm Clamp x Weld Eccentric Reducer PM Finish - LJI Part: T32M-300100PM
SKU
T32M-300100PM
SKU
T32M-300100PM
$225.05
| Brand | : Dixon |
|---|---|
| Size | : 3 Inch X 1 Inch |
| Type | : Clamp x Weld |
| Vendor Number | : T32M-300100PM |
For bioprocess and pharma lines: a 3" x 1" eccentric reducer in 316L, PM finish, SF4, manufactured to ASME BPE.
Controlled sulphur content is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 3" x 1" eccentric reducer connects clamp x weld.
- Size: 3" x 1" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x weld
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
