T7RWWMS400150PL - Dixon 4" X 1-1/2" - High Purity BioPharm Short Outlet Reducing Tees Weld x Weld x Clamp Connections and SF1 finish - LJI Part: T7RWWMS400150PL
SKU
T7RWWMS400150PL
SKU
T7RWWMS400150PL
$199.08
| Brand | : Dixon |
|---|---|
| Vendor Number | : T7RWWMS400150PL |

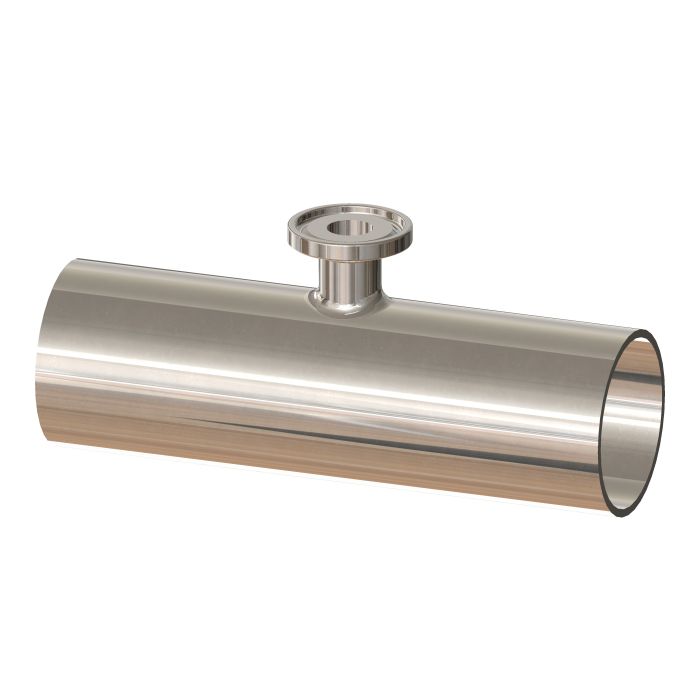

Dixon Bradford BioPharm reducing short outlet tee, 4" x 1-1/2", weld x weld x clamp. 316L for orbital welding with a PL finish, SF1 (32 Ra OD, 20 Ra ID).
Every Bradford BioPharm fitting arrives marked with its job number and heat number, and with an MTR in the bag. This 4" x 1-1/2" reducing short outlet tee connects weld x weld x clamp.
- Size: 4" x 1-1/2" tube OD
- Type: reducing short outlet tee
- End connections: weld x weld x clamp
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
