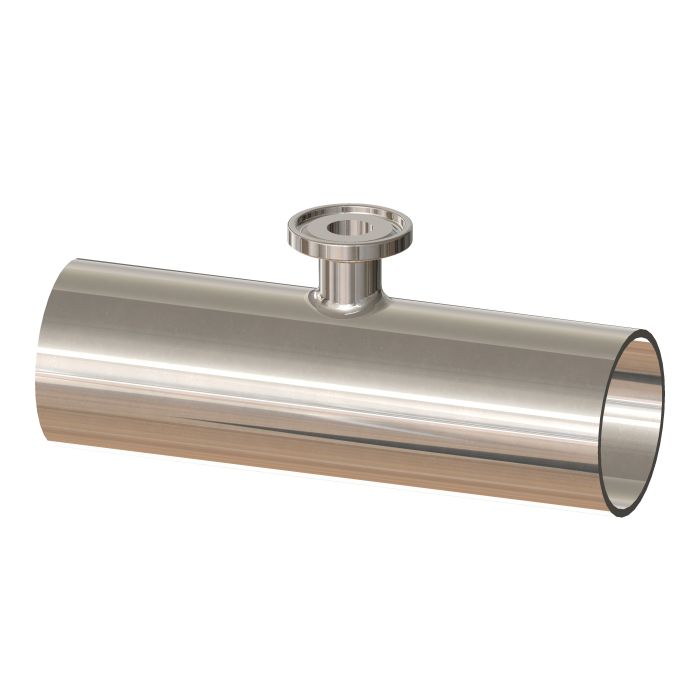

T7RWWMS400150PM - Dixon 4" X 1-1/2" - High Purity BioPharm Short Outlet Reducing Tees Weld x Weld x Clamp Connections and SF4 finish - LJI Part: T7RWWMS400150PM

Controlled sulphur is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 4" x 1-1/2" reducing short outlet tee connects weld x weld x clamp.

• Size: 4" x 1-1/2" tube OD
• Type: reducing short outlet tee
• End connections: weld x weld x clamp
• Surface finish: PM finish, SF4
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PM fittings are capped in white to prevent damage and contamination
