T7RMPS-400250PL - Dixon 4" X 2-1/2" - BioPharm Clamp x Clamp x Clamp Short Outlet Reducing Tee PM Finish - LJI Part: T7RMPS-400250PL
SKU
T7RMPS-400250PL
SKU
T7RMPS-400250PL
$329.60
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 2-1/2 Inch |
| Type | : Clamp |
| Vendor Number | : T7RMPS-400250PL |

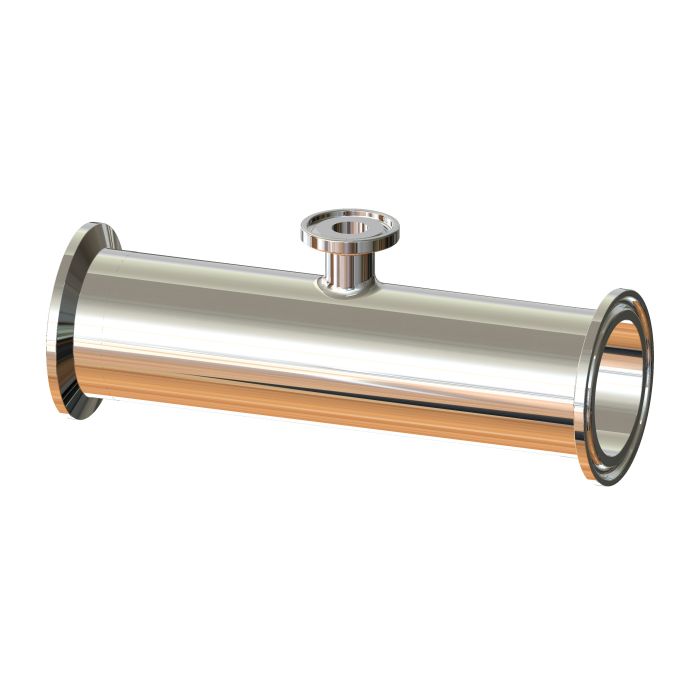

ASME BPE reducing short outlet tee in 4" x 2-1/2", clamp x clamp x clamp connections. Controlled-sulphur 316L, PL finish, MTR included.
Pharmaceutical, bioprocessing and semiconductor lines specify the fitting as tightly as the tube. This reducing short outlet tee is 4" x 2-1/2", clamp x clamp x clamp, finished to PL.
- Size: 4" x 2-1/2" tube OD
- Type: reducing short outlet tee
- End connections: clamp x clamp x clamp
- Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PL fittings are capped in blue to prevent damage and contamination
