T7RMPS-400250PM - Dixon 4" x 2-1/2" - BioPharm Clamp x Clamp x Clamp Short Outlet Reducing Tee PM Finish - LJI Part: T7RMPS-400250PM
SKU
T7RMPS-400250PM
SKU
T7RMPS-400250PM
$414.56
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch X 2-1/2 Inch |
| Vendor Number | : T7RMPS-400250PM |

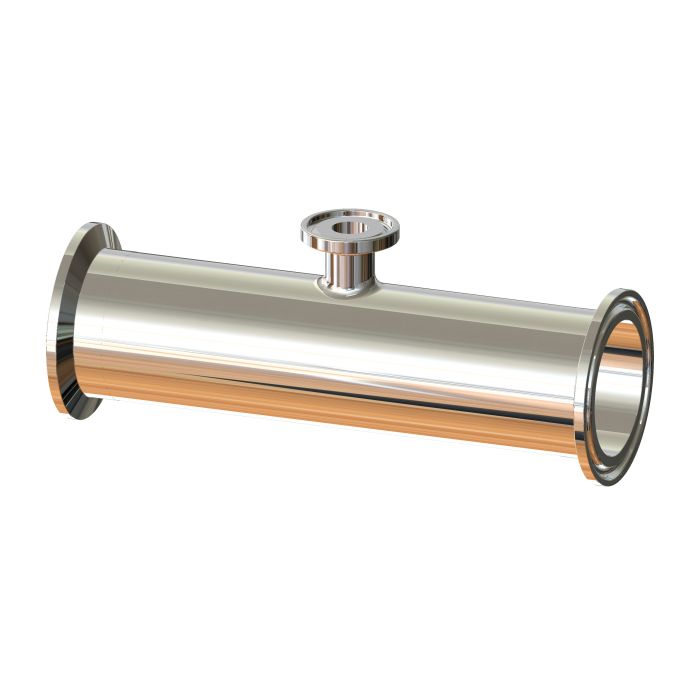

ASME BPE reducing short outlet tee in 4" x 2-1/2", clamp x clamp x clamp connections. Controlled-sulphur 316L, PM finish, MTR included.
Controlled sulphur is what makes 316L weld predictably on an orbital head, and it is why the BioPharm line specifies it. This 4" x 2-1/2" reducing short outlet tee connects clamp x clamp x clamp.
- Size: 4" x 2-1/2" tube OD
- Type: reducing short outlet tee
- End connections: clamp x clamp x clamp
- Surface finish: PM finish, SF4
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
