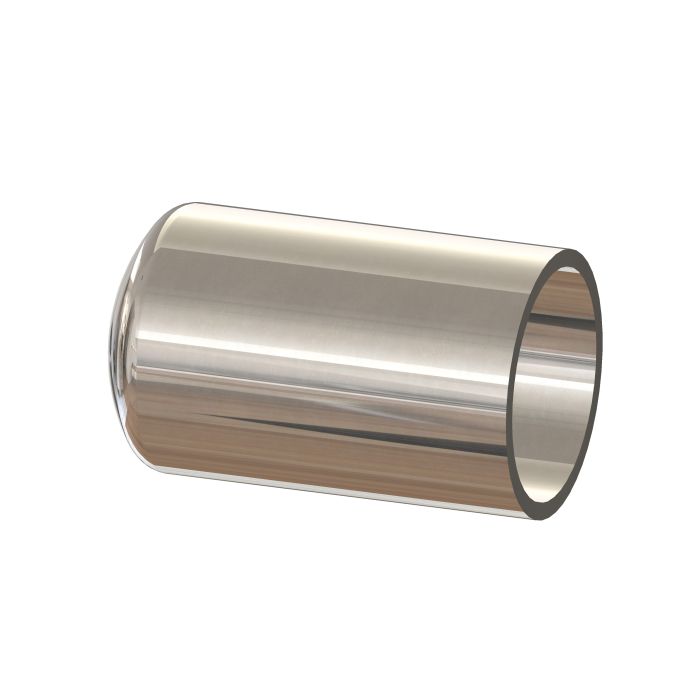

T16W-250PL - Dixon 2-1/2" - BioPharm Weld Cap High Purity - LJI Part: T16W-250PL

PL finish, SF1 (32 Ra OD, 20 Ra ID), 316L, butt weld. The 2-1/2" cap closes a Bradford BioPharm line without breaking the specification.

• Size: 2-1/2" tube OD
• Type: end cap
• End connections: butt weld
• Surface finish: PL finish, SF1 (32 Ra OD, 20 Ra ID)
• Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
• Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
• Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
• Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
• Material test report (MTR) included and traceable through the job number
• PL fittings are capped in blue to prevent damage and contamination
