T16W-400PM - Dixon 4" - BioPharm Weld Cap High Purity - LJI Part: T16W-400PM
SKU
T16W-400PM
SKU
T16W-400PM
$244.55
| Brand | : Dixon |
|---|---|
| Size | : 4 Inch |
| Type | : Caps |
| Vendor Number | : T16W-400PM |

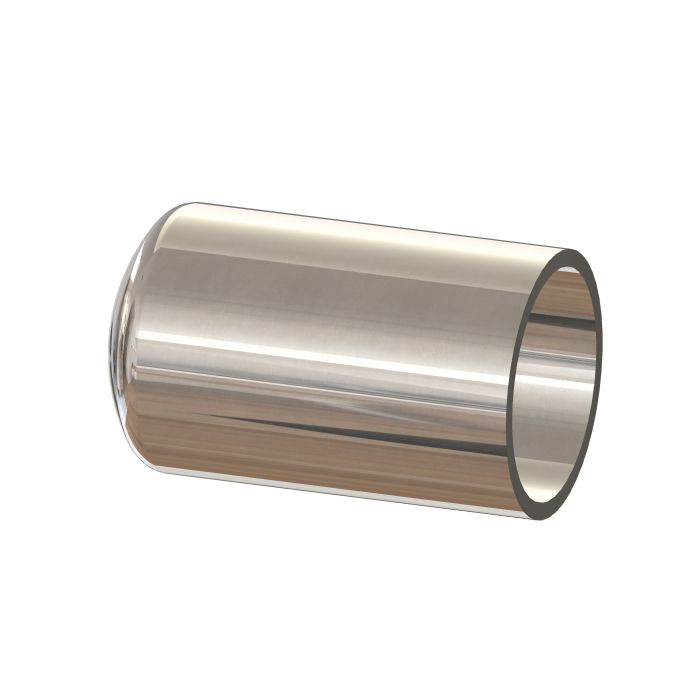

Dixon Bradford BioPharm 4" weld cap, controlled-sulphur 316L, finished to PM.
A capped line still has to meet the same finish and traceability standard as the rest of the run. This 4" weld cap is part of Dixon's Bradford BioPharm line and carries the same markings and MTR as every other fitting in it.
- Size: 4" tube OD
- Type: end cap
- End connections: butt weld
- Surface finish: PM finish, SF4
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
