T3114MP250150PM - Dixon 2-1/2" X 1-1/2" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP250150PM
SKU
T3114MP250150PM
SKU
T3114MP250150PM
$146.16
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 1-1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T3114MP250150PM |

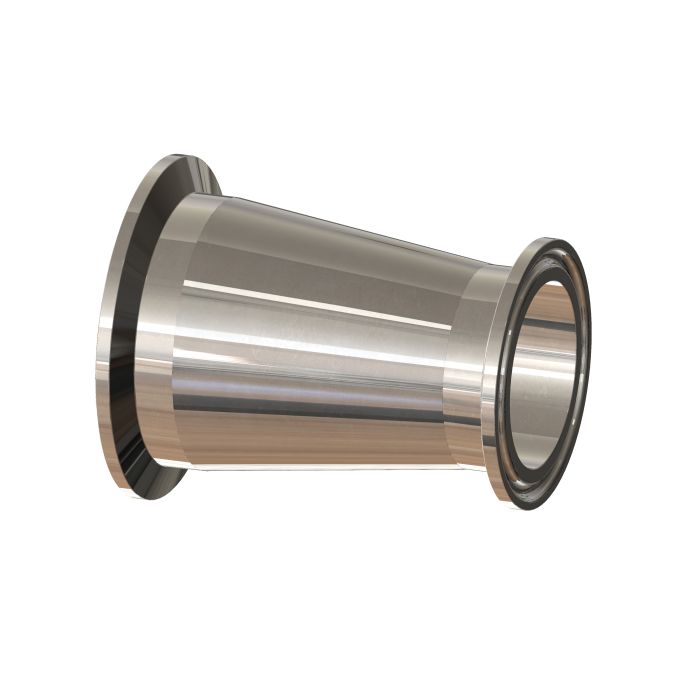

High purity concentric reducer, 2-1/2" to 1-1/2" tube OD, clamp x clamp. Built to the ASME BPE standard with a PM finish, SF4 and full material traceability.
A validated line does not tolerate an unmarked fitting. This concentric reducer carries its job number, heat number, surface finish code and ASME BPE marking, and steps 2-1/2" tube OD to 1-1/2".
- Size: 2-1/2" x 1-1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
