T3114MP250050PM - Dixon 2-1/2" X 1/2" - BioPharm Clamp x Clamp Concentric Reducer - LJI Part: T3114MP250050PM
SKU
T3114MP250050PM
SKU
T3114MP250050PM
$228.63
| Brand | : Dixon |
|---|---|
| Size | : 2-1/2 Inch X 1/2 Inch |
| Type | : Concentric Reducers |
| Vendor Number | : T3114MP250050PM |

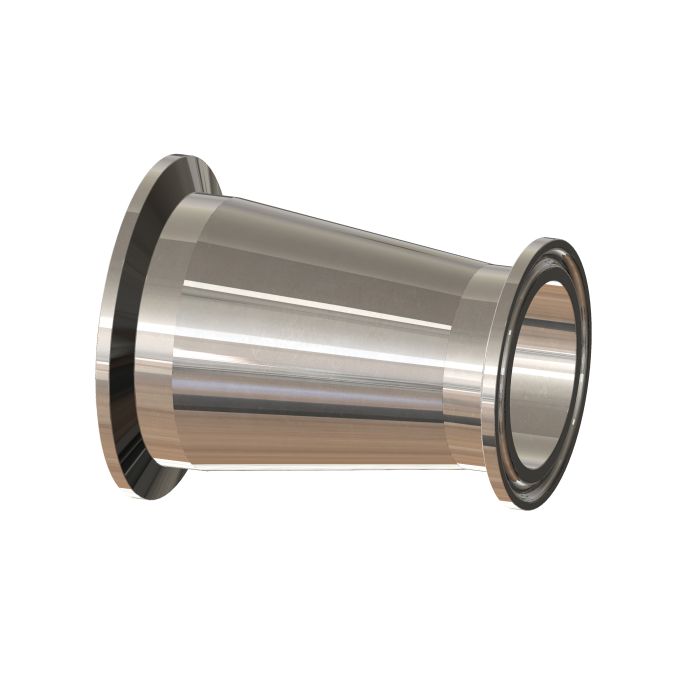

Dixon Bradford BioPharm, 2-1/2" x 1/2". A concentric reducer in controlled-sulphur 316L for orbital welding, finished to PM.
Pharmaceutical, bioprocessing, semiconductor, cosmetics, food and beverage lines all end up specifying the same thing: traceable 316L with a documented finish. This concentric reducer takes 2-1/2" tube OD to 1/2" on clamp x clamp ends.
- Size: 2-1/2" x 1/2" tube OD
- Material: 316L stainless steel, controlled sulphur to meet orbital welding specifications
- Surface finish: PM finish, SF4
- Manufactured to the latest edition of the ASME BPE International Standard, Bioprocessing Equipment
- Meets 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (authorization number 621)
- End connections: clamp x clamp
- Marked with job number, 316L, part number, heat number, surface finish code and ASME BPE
- Material test report (MTR) included and traceable through the job number
- PM fittings are capped in white to prevent damage and contamination
